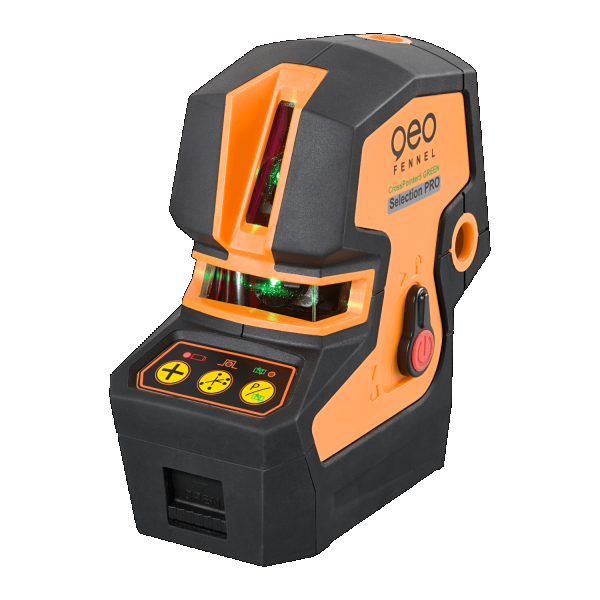

GEO-Fennel CrossPointer5 GREEN Line Laser (± 3°; Green LD)

Self-levelling range: ± 3°

Accuracy: ± 3 mm / 10 m

Laser diode: green

Working range without receiver: 50 m (radius)

Working range with receiver: 80 m (radius)

Fan angle horizontal line: 180°

Fan angle vertical line: 160°

Dust / water protection: IP 54

Laser class: 2

Operating time: 6 h (Full capacity utilisation)

Power supply: Li-Ion

Temperature range: -10°C to +45°C

Weight (instrument with battery): 0.7 kg

Supplied with:

· Multi-functional mount

· Li-Ion battery

· Intelligent charger

· Magnetic target

· Container
