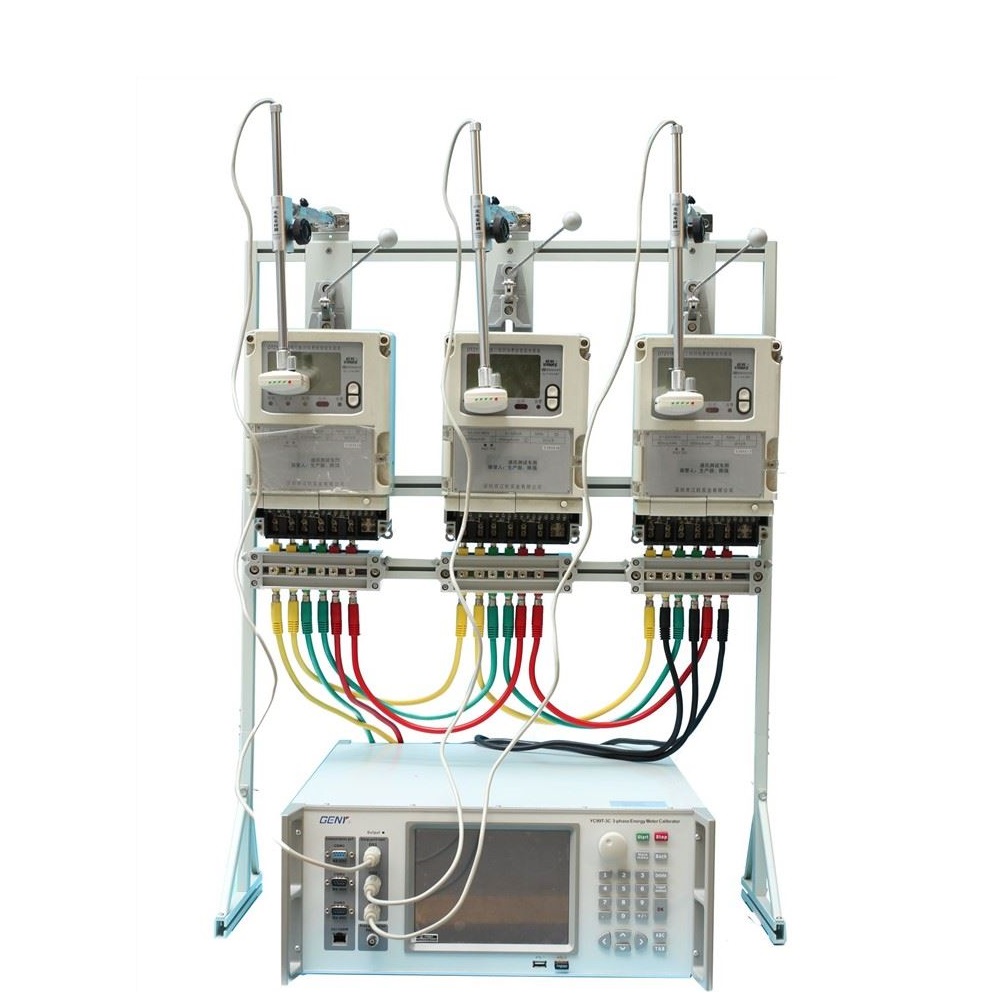

GENY YC99T Portable Meter Test Equipment (Max.3*20A, 3*100VA)

Voltage

- Test voltage output (Phase-Neutral): 3*(0V-450V)

- Power of the voltage output: Max.3*20A

- Resolution: 0.01%

- Accuracy: 0.05%

- Stability: 0.02%/120s

Current

- Test current output: 3*(1mA-120A)

- Power of the current output: Max.3*100VA

- Stability: 0.02%/180s

Phase angle

- Range: 0-360°

- Resolution: 0.01°

- Accuracy: 0.2°

Frequency: Resolution: 0.005Hz

Pulse output:

- High frequency output(HF): Multiple constance

- Low frequency output(LF): LF=HF/20000

Pulse input:

- Input channel: 3

- Input frequency: Max.20Hz

Dimension (LxWxH)/ Weight

- Main: 445x180x680mm/46kg

- Auxiliary: 990x630x730mm/100kg
