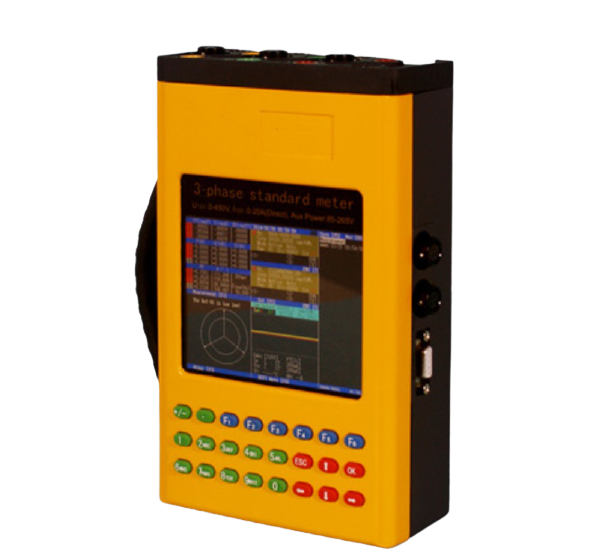

GENY YC98G Portable Three-Phase Standard Meter for Calibration Electricity Meter (5-450V, 0.05-20A)

Item: Measurement range/ Effective resolution/ Accuracy (%)

Voltage: 5-450V/ 0.001V/ 0.05%

Current CT: 0.05-20A/ 0.0002A/ 0.05%

Clamp CT: 0.01- 100A/ 0.001A/ 0.15%

Frequency: 45-65Hz/ 0.001Hz/ 0.01Hz

Active power: 0~±Umax X Imax/ 0.0001W/ 0.1%

0~±Umax X Imax/ 0.0001W/ 0.2%

Reactive power: 0~±Umax X Imax/ 0.0001 Var/ 0.2%

0~±Umax X Imax/ 0.0001 Var/ 0.3%

Apparent power: 0~±Umax X Imax/ 0.0001 VA/ 0.2%

Active energy: -/ -/ 0.1%

-/ -/ 0.2%

Reactive energy: -/ -/ 0.2%

-/ -/ 0.3%

Power Factor: 0~±0.9999/ 0.0001/ ±0.01

Phase angle: 0 ~ 359. 999º/ 0.001º/ ±0.01º

Dimension

- Instrument: 245x162x60mm

- Carry case: 559x351x229mm

Weight

- Weight of the main instrument: 1.7kg

- Total set weight: 11.5kg
