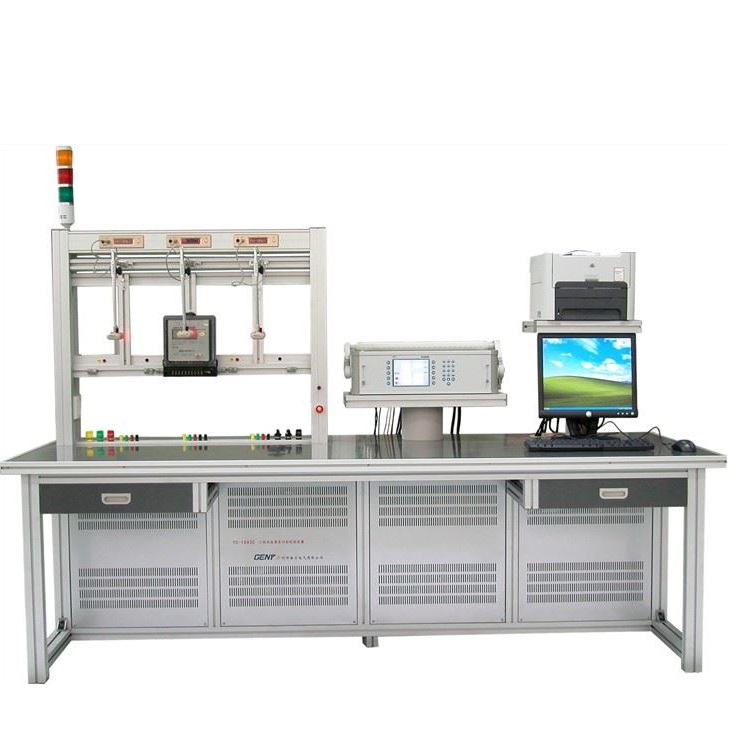

GENY YC1893R High Precision Three Phase Meter Test System (40V~300V, 1mA~120A/200A)

Structure composition

- Number Of Meter Positions: 3/6

- Accuracy Class: 0.01%

- Power Source: YCS-103

- Reference Standard Class: 0.01%

- Scanning Head: YCG-S Series

Voltage source

- Test voltage output(Phase-Neutral): 3x(40V~300V)(or customized)

- Power of the voltage output: 3x200VA

- Resolution: Better than 0.001%of full scale value of range

- Stability: Better than 0.002%/h (integration time 150s)

- Load regulation from 0~max.load: Better than 0.01%

- Distortion factor: Better than 0.05%for linear resistance load

- Harmonic: 2nd-41st free programmable

Current source

- Test current output: 3x(1mA-120A/200A)

- Power of the current output: 3x300VA

Phase angle

- Range: 0~360°

- Resolution: 0.001Hz

Frequency: Resolution: 0.001Hz

Error display

- Type of error display: Red LED

- Resolution of error displays: 8 digitals

Dimension(LxWxH)

- Main: 1830x1030x1800mm

- Plywoodcase: 1930x1130x2000mm

Weight

- Main: 330kg

- Plywoodcase: 413kg
