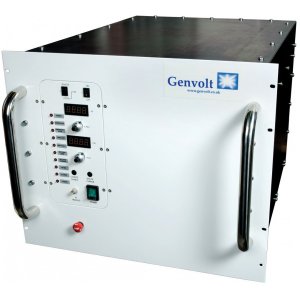

Genvolt Rhea Power Supply (20kW, 30kW)

Input Power:

Voltage Source: 550VDC or 380VAC, 415VAC, 440VAC Three phase

Output Power:

Output Voltage: 500V, 1000V, 1500V, 2000V

Polarity: Positive or negative

Output Adjustable: from 0

Stability: Better than 0.1%

Line Regulation: Better than 0.1%

Load Regulation: Better than 0.1%

Output Power: 20kW, 30kW

Operating Mode: Constant voltage or constant current

Operating Cycle: Continuous

Charging PRF: Up to 4000Hz

Cooling: Water cooling

Efficiency: >90%

Power Factor: >0.9

Dimension: 19” Subrack, 9U height, 700mm depth

Weight: 70kg

Operating Temperature: 0 to 40°C

Operating Humidity: <90% non-condensing
