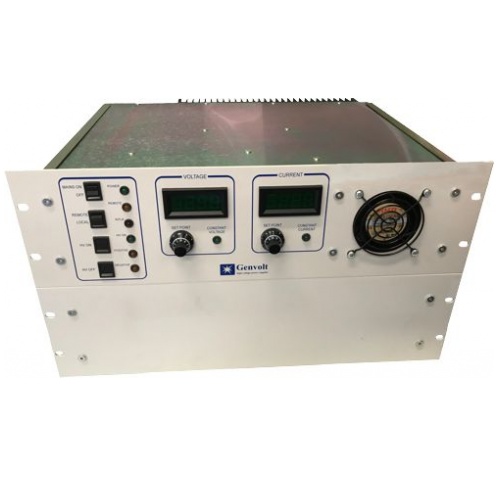

Genvolt Europa 19" Rack Mount Power Supply (upto 100kV)

Electrical Specification

V: 100kV, 50kV, 35kV, 20kV

I: 1mA, 4mA, 6mA, 10mA

W: 100W, 200W, 210W, 200W

Line Regulation: Not more than 50ppm of maximum rated output voltage for ± 10% input line change

Load Regulation: Not more than 100ppm of maximum rated output voltage for 0 to maximum output current change.

Ripple: Not more than 20V (peak to peak) - 100W Version

Temperature Coefficient:

(0 to 50°C) Not more than 50ppm of maximum output per °C

Stability After ½ Hour Warm Up:

Not more than 0.01% per hour

Not more than 0.02% per 8 hours.

Size: 19 inch wide suitable for standard rack mounting, 6U high

Weight:

Main Unit: 35kg

Alternative Polarity Head: 12kg

High voltage connector and cable: Pre-assembled mating high voltage connector with 3 metres of high voltage shielded cable will be provided as standard.

Power input connector: A 2m 3-wire mains lead plug will be provided as standard.

Cooling: Forced air by means of a fan.

IEEE-488 interface: Full talker/listener capability is available through the IEEE-488 interface.

The interface functions allow output voltage and current limit to be programmed via the IEEE-488 bus. In addition, voltage and current measurements can be taken on request.

Power requirements: 230V AC ± 10%, less than 2A, 50Hz.

Temperature: Operating: 15°C to 35°C.

Storage: 0°C to 50°C.

Relative humidity: Operating: 30% to 80%.

Storage: < 95%.
