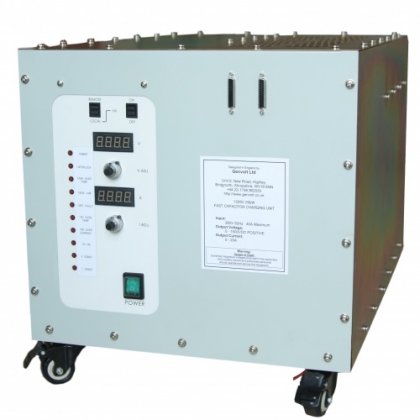

Genvolt Callisto (15kW) High Voltage Power supply

Input

Voltage source: 380 to 440VAC

Power factor: ≥ 0.9

Output

Output power: 15kW peak when capacitor charging

Output voltage: 0-1kV|0-2kV|0-5kV|0-10kV|0-20kV|0-30kV|0-40kV|0-50kV|0-60kV

Output current: 0-15A|0-7.5A|0-3A|0-1.5A|0-0.75A|0-0.5A|0-0.375A|0-0.3A|0-25A

The peak current may be double this when capacitor charging

Line regulation: 0.1%

Load regulation: 0.1%

Efficiency: ≥ 0.92

Polarity: Positive or negative

Duty cycle: 100% at 15kW

Control:

Charge enable: Fibre optic input, active light on

Voltage program: Adjusted by 10 turn potentiometer with a DVM reading on front panel.

Voltage monitor: 0 to 10V represents 0 to 60kV output through BNC connector

End of charge: Fibre optic output, active light on

Operation temperature: 10 to 40°C

Storage temperature: -10 to 60°C

Humidity: 0-90% (non-condensing)

Cooling: Forced air

Height: 9U

Depth: 560mm

Width: 19” Rack | 605mm

Weight: 70kg
