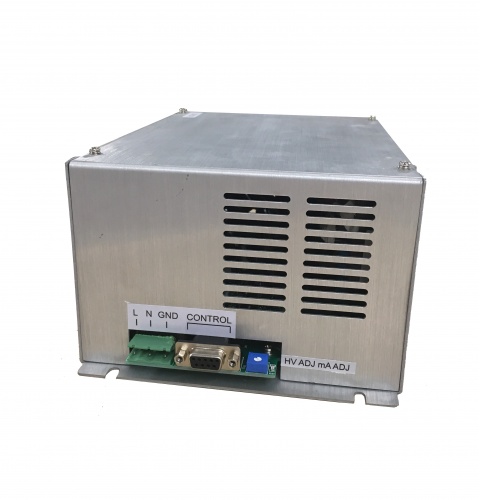

Genvolt AF06 High Voltage Power Supply (600W,800W,1000W)

Input voltage: 220VAC (200VAC - 240VAC)

Input current: Less than 6A

Output voltage range: 10kV to 60kV

Power range: 600W, 800W and 1000W

Output polarity: Positive or negative. Please specify when ordering.

Line regulation: Less than 0.5%

Load regulation: Less than 0.5%

Voltage ripple: Less than 1% at full load.

Temperature drift: 300ppm/°C maximum when operating under 55°C.

Operating temperature: -10°C to 50°C

Storage temperature: -20°C to 80°C

Voltage range: 10-20kV30-40kV50-60kV

Width:160mm180mm180mm

Height:105mm136mm155mm

Depth:268mm310mm340mm

HV output connector: On one side of the power supplyMounted on the back panelMounted on the back panel

Control interface connector: 9 way D type female connector (Optional: 10 way IDC connector)

Power input connector: Standard 3 way PCB terminal socket & plug 7.62mm pitch.
