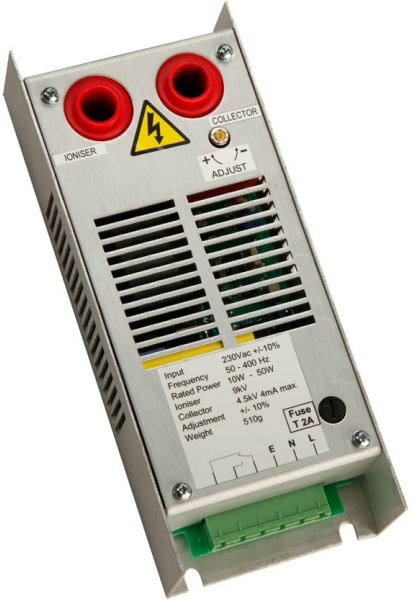

Genvolt AF01 High Voltage Module/ Output Power (20W, 30W, 40W, 50W)

Input specifications:

Input voltage range: 115VAC (105 - 125VAC), 220VAC (200 - 240VAC)

Input current: Less than 400mA at 220VAC

Output voltage:

AF01 7/3.5: Ionizer / Collector 7kV / 3.5kV

AF01 8/4: Ionizer / Collector 8kV / 4kV

AF01 9/4.5: Ionizer / Collector 9kV / 4.5kV

AF01 10/5: Ionizer / Collector 10kV / 5kV

AF01 11/5.5: Ionizer / Collector 11kV / 5.5kV

AF01 12/6: Ionizer / Collector 12kV / 6kV

Output specifications:

Output power: 20W, 30W, 40W, 50W

Load regulation: Less than 0.1%

Line regulation: Less than 0.1%

Temperature drift: Less than 400ppm/°C when operating under 55°C

Voltage ripple: Less than 0.3% at full load

Operating temperature: 0 to 55°C

Storage temperature: -20 to 80°C

Dimensions: 200mm X 80mm X 40mm

Weight: 0.6kg

Enclosure material: Aluminium alloy
