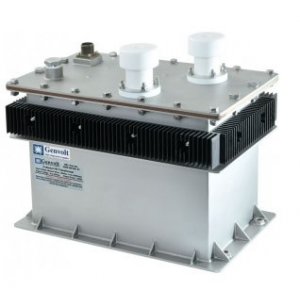

Genvolt 6.4kW HV Transformer Rectifier Transformer / Rectifier

Power rating: 6.4kW

Frequency of operation: 20kHz

Output voltage: 46kVDC on full load

Average current: 140mA max.

Input voltage: 450V peak to peak

Primary current: Quasi sine wave (zero voltage switching)

Leakage inductance: <30uH

Pulse load current: 4A max.

Primary average current: 20A max.

Primary pulse current: 55A max.

Dimensions: 265W x 425D x 347H

Material: Stainless steel

Weight: 50kg max.

High temperature operation: +55°C

High temperature storage: +70°C

Low temperature operation: -20°C

Low temperature storage: -30°C

Relative humidity test: 95% RH at 40°C Non-condensing
