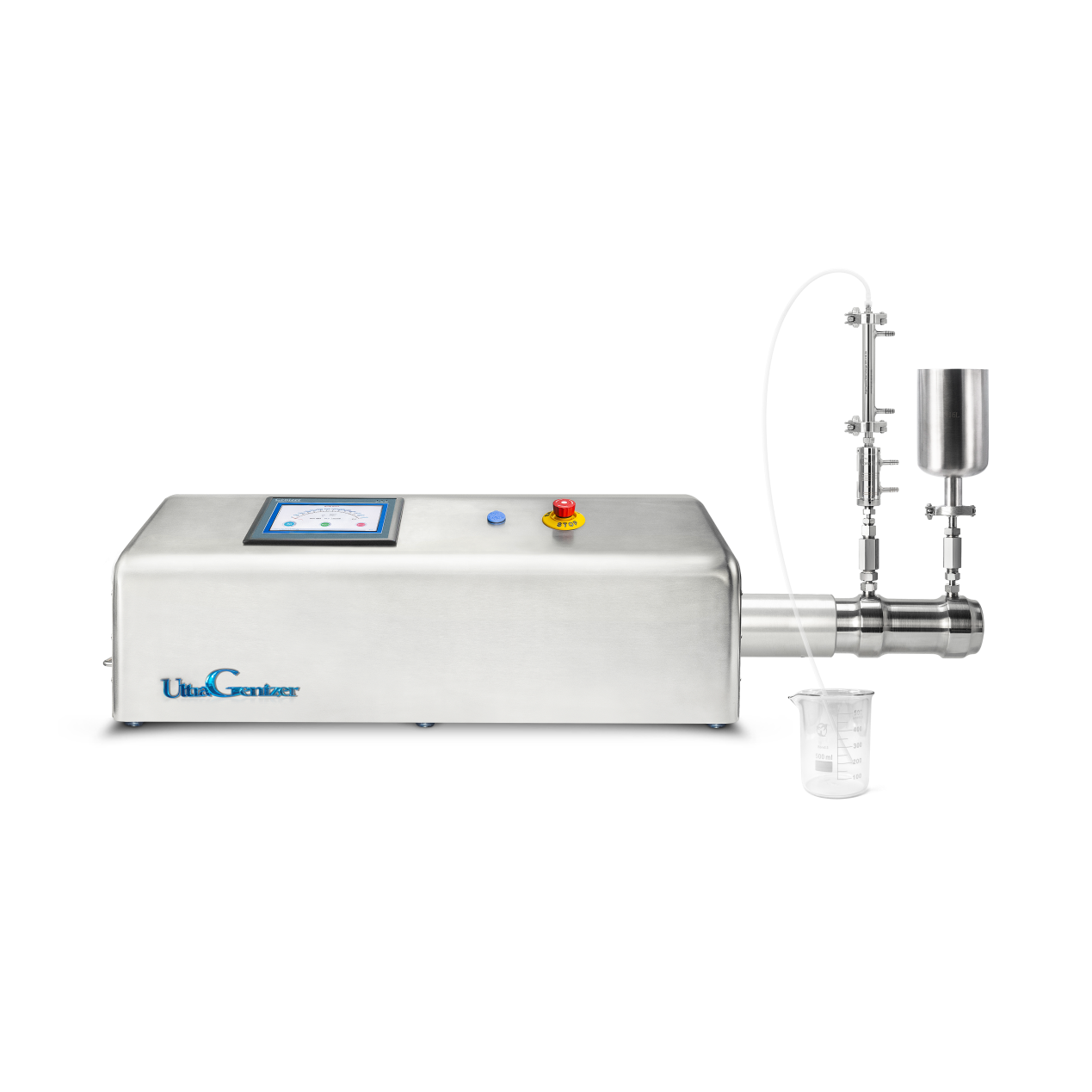

Genizer UltraGenizer-30K Ultra High Pressure Homogenizer (25L/hr, 25L, 30,000psi)
Flow Rate: 12L/hr
Min. Sample: 26mL
Max. Pressure: 30,000psi
Dimensions(cm): 150 × 68 × 48
Weight: ~110 kg
Max. Temp.: 70°C (158°F)
Power: 380V
Cleaning: Flush to clean
Application: Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, de-agglomeration, nanoparticle, graphene
Features: Digital display of pressure or pressure gauge
Standard features
Parts: Ultra Y-type diamond interaction chamber with cooling option
Control System: High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, settable volume control as low as 1mL, display of flow rate and time, overload protection
Pressure Gauge: Digital display on the touch screen
Inlet Type: 3/8" HP coupling
Outlet Type: 3/8" HP coupling
Inlet Reservoir: 100mL syringe
Outlet Reservoir: 100mL syringe
Product Material: 316L stainless steel, tungsten carbide, viton, teflon
Material Standard: Sanitary grade, FDA, GMP
UltraGenizer-30K, Suitable for Larger Flow Rate Requirements
From Genizer LLC
The UltraGenizer is a ultra-high-pressure homogenizer and cell disruptor suitable for larger flow rate requirements. The maximum pressure of the UltraGenizer is up to 60,000 psi. The UltraGenizer single pump system is smart and simple to operate, including a diamond interaction chamber to disrupt the cell and reduce the particle size. Regarding the sample cooling unit, a 316L stainless heat exchanger can be installed in the system to achieve real-time cooling on the samples. Additionally, the Genizer PLC touch screen creates a simple user interface for operators, including the access to the auto-stop setup (set time, cycles numbers, and pressure). All parts touching with medium are 316L stainless steel, 17-4ph stainless steel, titanium alloy, tungsten carbide, PTFE, UHMWPE or other corrosion resistance materials.
Main features of the UltraGenizer-30K:
▶ Pressure: 30,000 psi (2,068 bar)
▶ Flow rate: ~12 L / h (water value)
▶ Minimum sample volume: ~26 mL
▶ Weight: ~110 kg
▶ Power requirement: 380V, three phase, 50/60Hz
▶ Diamond Interaction Chamber (Electro-Polish and Passivation for pharmaceutical applications)
▶Application: Nano emulsions, fat emulsions, liposomes, cell disruption, nano dispersion, deagglomeration
