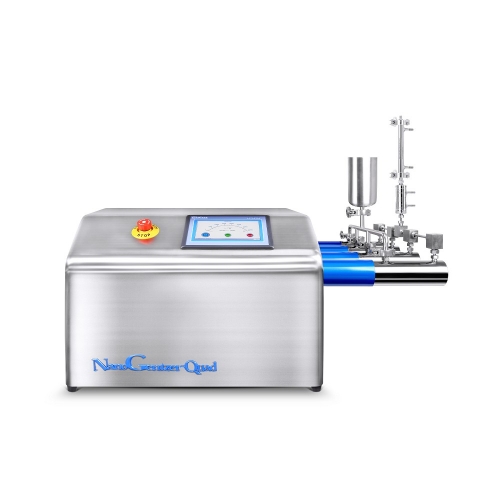

Genizer NanoGenizer-Quad High Pressure Homogenizer (6-27L/hr, 5mL, 30,000psi)

Flow Rate: 6-27L/hr

Min. Sample: 5mL

Max. Pressure: 30,000psi

Dimensions(cm): 92 × 69 × 40

Weight: 117 kg (258 lbs)

Max. Temp.: 80ºC (176ºF)

Power: 220V

Cleaning: Flush to clean

Application: Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration

Features: Digital display of pressure or pressure gauge

Standard Features

Parts: Y-type diamond interaction chamber with cooling option

Control System: High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, display of flow rate and time, overload protection

Pressure Gauge: Digital display on the touch screen

Inlet Type: Tri-clamp

Outlet Type: Tri-clamp

Inlet Reservoir: 500mL S/S cylinder

Outlet Reservoir: Plastic hose

Product Material: 316L stainless steel, tungsten carbide, viton, teflon

Material Standard: Sanitary grade, FDA, GMP

Description:

Laboratory Quad-Pump up to 30,000 psi with concept testing of parallel and series flow direction.

Application:

Nanodispersions, nanoemulsions and nanotube

Cell disruption

Micro/nanoencapsulation in polymers, liposomes and oils

Solid dispersion and suspension, deagglomeration

Performance:

Energy efficient, 1/2 energy loss of the most homogenizers

Small (integrated design delivers the light weight and small dimensions)

Smart (programming control systems confer diligent functions: auto stop with time/volume)

Silent (noiseless performance)

Strong (6-27L/hr)

CE compliant and RoHs compliant
