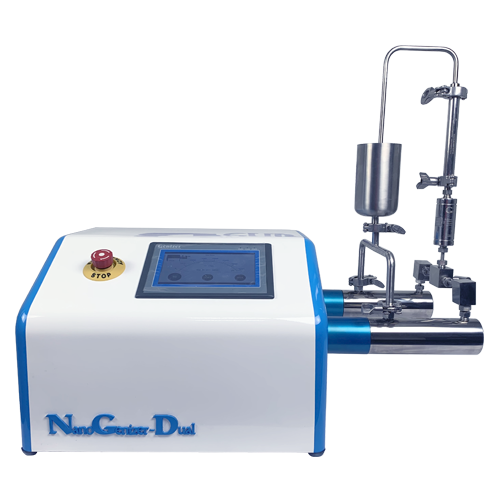

Genizer NanoGenizer-Dual High Pressure Homogenizers (180 mL/min at 25,000 psi, 120 mL/min at 30,000 psi)

Flow Rate: 180 mL/min at 25,000 psi, 120 mL/min at 30,000 psi

Min. Sample: 30mL

Max. Pressure: 30,000psi

Dimensions(cm): 72 × 43 × 33

Weight: 60 kg (133 lbs)

Max. Temp.: 80ºC (176ºF)

Power: 220V

Cleaning: Flush to clean

Application: Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration

Features: Digital display of pressure or pressure gauge

Standard Features

Parts:Y-type diamond interaction chamber with cooling option

Control System: High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, display of flow rate and time, overload protection

Pressure Gauge: Digital display on the touch screen

Inlet Type: 1/4" HP coupling

Outlet Type: 1/4" HP coupling

Inlet Reservoir: 300mL S/S cylinder

Outlet Reservoir: S/S pipe

Product Material: 316L stainless steel, tungsten carbide, viton, teflon

Material Standard: Sanitary grade, FDA, GMP

Description:

Portable Laboratory Dual-Pump testing up to 30,000 psi with electric power.

Application:

Nanodispersions, nanoemulsions and nanotube

Cell disruption

Micro/nanoencapsulation in polymers, liposomes and oils

Solid dispersion and suspension, deagglomeration

Performance:

Energy efficient, 1/2 energy loss of the most homogenizers

Small (integrated design delivers the light weight and small dimensions)

Smart (programming control systems confer diligent functions: auto stop with time/volume)

Silent (noiseless performance )

Strong (180 mL/min at 25,000 psi, 120 mL/min at 30,000 psi)

CE compliant and RoHS compliant

User manual
