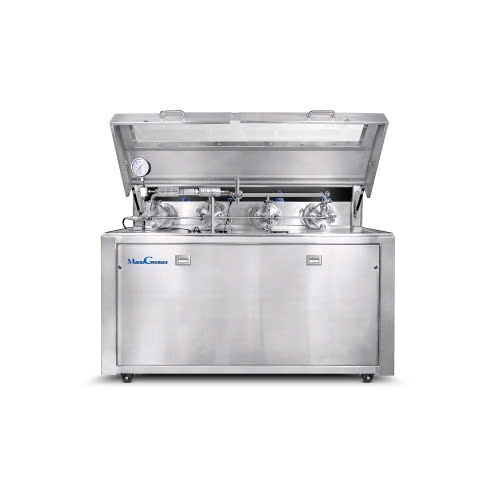

Genizer ManuGenizer-20K High Pressure Homogenizer (120L/hr - 500L/hr, 2000mL, 20,000psi)

Flow rate: 120L/hr - 500L/hr

Min.Sample Size: 2000mL

Max.Pressure: 20,000psi

Dimensions: 275×160×150 cm

Weight: ~2000kg

Max. Temp.: 80ºC (176ºF)

Power: 380V/430V

Cleaning: Flush to clean/CIP/SIP

Application: Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration

Features: Dual/Quad pumps for constant pressure, digital display of pressure

Standard features:

Parts: Multi-slotted diamond interaction chamber

Control System: High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, display of flow rate and time, overload protection

Pressure Gauge: Electric

Inlet Type: Tri-clamp or luer

Outlet Type: Tri-clamp or luer

Feed Reservoir: 2000mL SUS316 cylinder, online

Collector Reservoir: 2000mL SUS316 cylinder, online

Product Material: 316L stainless steel, tungsten carbide, viton, teflon

Material Standard: Sanitary grade, FDA, GM

Description:

Manufacturing Scale High Pressure Homogenizer with Dual or Quad Pumps, designed to provide constant pressure up to 45,000 psi to the product stream. This, in turn, results in less processing time and maximizes the microfluidics homogenizing performance. The ManuGenizer utilizes a microfluidics Diamond Interaction Chamber with multi-slotted nano-size micro channels inside the chamber, which allows for much larger volumes to be continuously processed.

Application:

Nanodispersions, nanoemulsions and nanotube, graphene,

Cell disruption,

Micro/nanoencapsulation in polymers, liposomes and oils,

Solid dispersion and suspension, deagglomeration

Performance:

Energy efficient, 1/2 energy loss of the most homogenizers

Small (integrated design delivers the light weight and small dimensions)

Smart (programming control systems confer diligent functions)

Silent (noiseless performance with high energy efficiency)

Strong (up to 480L/hr at 30,000 psi, water value)

CE compliant and RoHs compliant
