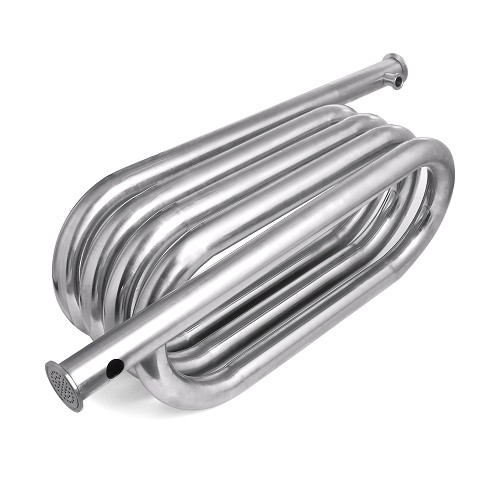

Genizer HPE-5000 Sanitary Heat Exchanger (500L/hr, ~3000 W/°C, 1,500 psi)

Flow Rate: 500L/hr

HT. Rate: ~3000W/°C

Max. Pressure: 1,500psi

A Connection: 2"

B Connection: 1"

Length: 5000mm

Dimensions(cm): 520×500×450

Weight: 15kg

Max. Temp.: -190°C-250°C (-310ºF-482ºF)

Fitting: Tri-clamp

Sterilization: CIP/SIP

Application: Processing equipment | condensing and evaporating | regenerative heat transfer | process fluid temperature control | batch process cooling or heating | cryogenic cooling | sample cooling | clean steam condensing and sub-cooling | temperature control of high purity product

Features: Sanitary for pharmaceutical industry

Standard Features:

Parts: 9/16UNF M to 1" tri-clamp, 3/4-16UNF M to 2" tri-clamp

Surfacing: Electro-polish and inner passivation

Inlet Type: 1" or 2" tri-clamp

Outlet Type: 1" or 2" tri-clamp

Product Material: 316L stainless steel

Material Standard: Sanitary grade, FDA, GMP

Description:

 High pressure sanitary 3D shell and tube heat exchangers. Highly efficient designs, with 3D shell diameters ranging from 3/4" to 2" produce heat transfer rates up to 60 kW with flow rates up to 1,000 L/hr.

 Application:

 Fluid | homogenizer | extruder | biotechnology | fuel cell | semiconductor

 Performance:

 High pressure: up to 5,000 psi

Sanitary: 316L stainless steel

Compatible: Tri-clamp, NPT, UNF, flange and custom fittings available

Efficient: Small-diameter tubes, closely packed for maximum effectiveness.

Compatibility: GMP and FDA compliant
