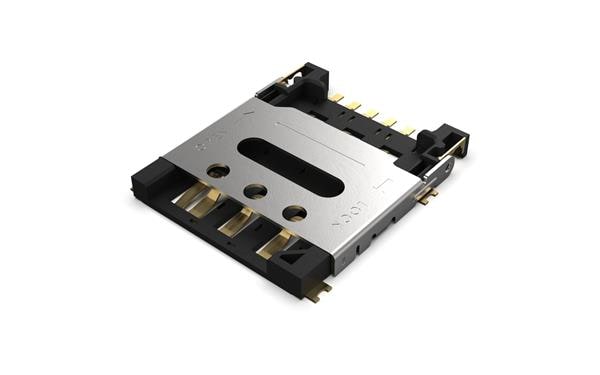

GCT (Global Connector Technology) SIM8060-6-1-14-00-A Card Connectors Nano SIM Card Connector, Hinged Type, SMT, 6Pin, with normally open card detection switch, 1.43mm Profile

Pitch: 1.42 mm

Height: 1.43 mm

Features: With normally open card detection switch

Card Type: NanoSIM

Unit Weight: 457.143 mg

Mating Cycles: 5000

Current Rating: 500 mA

Mounting Style: PCB Mount

Number of Rows: 1 Row

Voltage Rating: 125 VAC, 125 VDC

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Termination Style: SMD/SMT

Number of Contacts: 6 Contact

Flammability Rating: UL 94 V-0

Insulation Resistance: 100 MOhms

Insertion - Extraction Style: Hinged

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C
