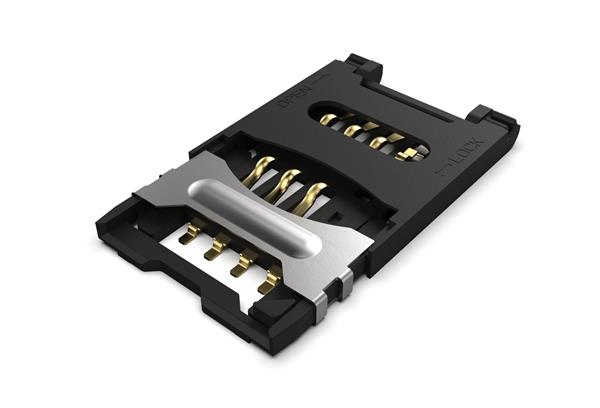

GCT (Global Connector Technology) SIM5055-6-1-25-00-A Card Connectors SIM Card Connector, Hinged Type, 6 Pin, SMT,2.50mm Profile, with Card Detection Switch

Height: 2.50 mm

Features: With normally open card detection switch

Card Type: Mini SIM

Unit Weight: 1.851 g

Mating Cycles: 5000

Current Rating: 1 A

Mounting Style: PCB Mount

Number of Rows: 1 Row

Voltage Rating: 50 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: SMD/SMT

Number of Contacts: 6 Contact

Flammability Rating: UL 94 V-0

Insulation Resistance: 1 GOhms

Insertion - Extraction Style: Hinged

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
