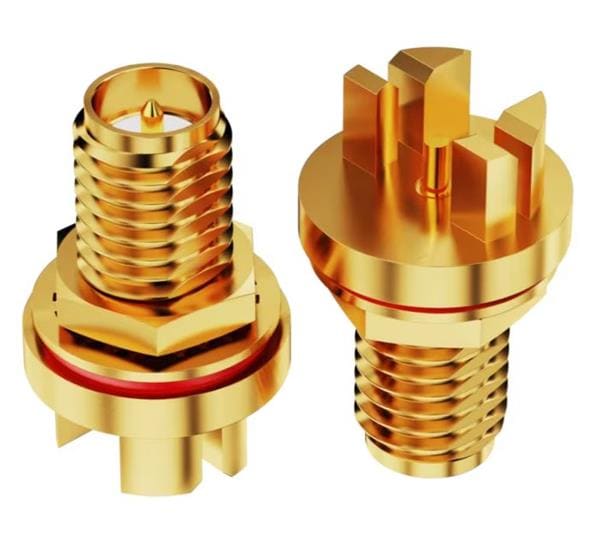

GCT (Global Connector Technology) RFPC-SMA33-FN-186-A PCB Connectors RP-SMA, PCB Mount, Bulkhead Jack, End launch, With O-ring 6GHz, IP68/69K, 1.6mm PCB thickness
ModelRFPC-SMA33-FN-186-A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Pin)
Polarity: Standard
Frequency: DC to 6 GHz
IP Rating: IP68, IP69K
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: SMA
Body Style: Edge Mount
Body Finish: Gold
Body Material: Brass
Mounting Style: PCB Mount
Board Thickness: 1.6 mm
Contact Plating: Gold
Contact Material: Phosphor Bronze
Maximum Frequency: 6 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
