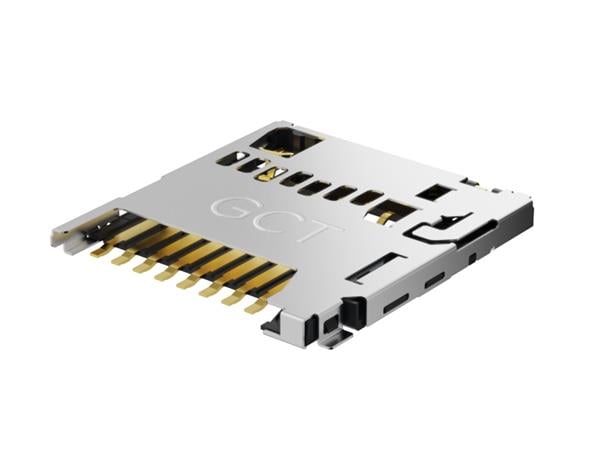

GCT (Global Connector Technology) MEM2080-00-128-00-A Card Connectors Micro SD, Push Push, SMT, Card Entry Normal, 1.28 mm profile
ModelMEM2080-00-128-00-A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 1.28 mm
Height: 1.28 mm
Features: Push-Push Style with Normally Open Switch
Card Type: microSD
Current Rating: 500 mA
Mounting Style: PCB Mount
Number of Rows: 1 Row
Voltage Rating: 12 VAC, 12 VDC
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: SMD/SMT
Number of Contacts: 8 Contact
Flammability Rating: UL 94 V-0
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
