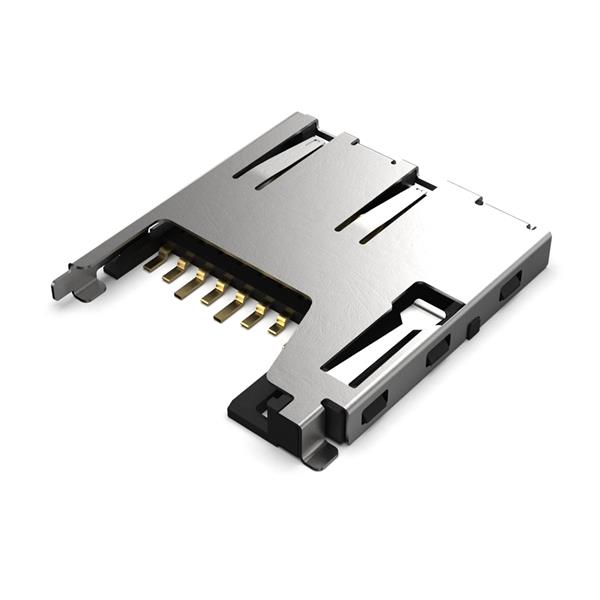

GCT (Global Connector Technology) MEM2061-01-188-00-A Card Connectors Micro SD Push Push, Closed, SMT, 1.88mm profile, No Peg, T&R

Pitch: 1.88 mm

Height: 1.88 mm

Features: Push-Push Style with Normally Closed Switch

Card Type: microSD

Unit Weight: 680 mg

Mounting Type: Top

Current Rating: 500 mA

Mounting Style: PCB Mount

Number of Rows: 1 Row

Voltage Rating: 100 VDC

Contact Plating: Gold

Contact Material: Phosphor Bronze

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: SMD/SMT

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Insulation Resistance: 500 MOhms

Insertion - Extraction Style: Push-Push

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
