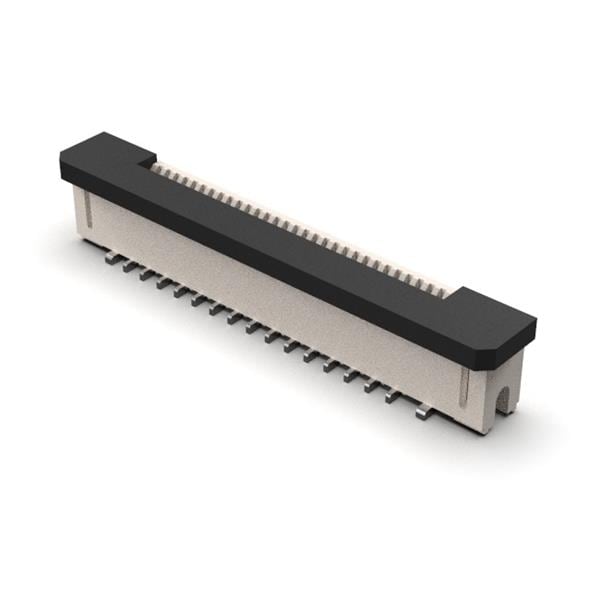

GCT (Global Connector Technology) FFC2A32-30-T Board Mount 30W, 0.5MM, FFC Con, Vert, H4.25mm, SMT, Tin, T&R
ModelFFC2A32-30-T
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 0.5 mm
Unit Weight: 576.667 mg
Housing Color: Natural
Accessory Type: Slide Actuator
Actuation Type: Slide
Current Rating: 200 mA
Mounting Angle: Vertical
Mounting Style: SMD/SMT
Voltage Rating: 30 VAC, 30 VDC
Contact Plating: Tin
Contact Location: Side Contact
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: SMD/SMT
Flammability Rating: UL 94 V-0
Number of Positions: 30 Position
Insulation Resistance: 50 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
