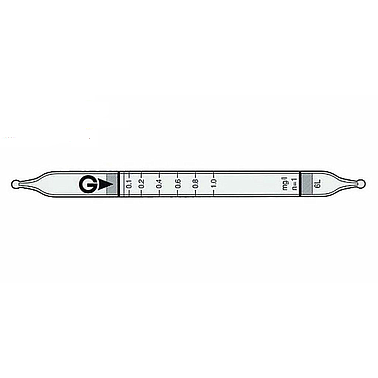

Gastec 6L Quick-measuring Detector tubes Water vapour H2O (0.05~2mg/l)

Indicator: 0.1~1.0 mg/l
Measuring Range:
+ 0.05 to 1 mg/L, Number of Pump Strokes 1
+ 1 to 2 mg/L, Number of Pump Strokes 1/2
Sampling Time: 30 seconds per pump stroke
Colour Change: Yellow → Purple
Reaction Principle: H2O + Mg(ClO4)2 → Mg(ClO4)2 H2O
Coefficient of Variation: 10% (for 0.05 to 0.2 mg/L), 5% (for 0.2 to 1 mg/L)
Nr. of tests: 10
Pump: GV-100S/110S

Catalog

Manual

Manual tube

Measuring Range	0.05 to 1 mg/L 1 to 2 mg/L
Number of Pump Strokes	1 1/2
Correction Factor	1 2
Sampling Time	30 seconds per pump stroke
Detecting Limit	0.03 mg/L (n=1)
Colour Change	Yellow → Purple
Reaction Principle	H2O + Mg(ClO4)2 → Mg(ClO4)2 H2O
Coefficient of Variation	10% (for 0.05 to 0.2 mg/L), 5% (for 0.2 to 1 mg/L)
Shelf Life	3 Years
Corrections for temperature & humidity	Unnecessary
Store the tubes at cool and dark place.
