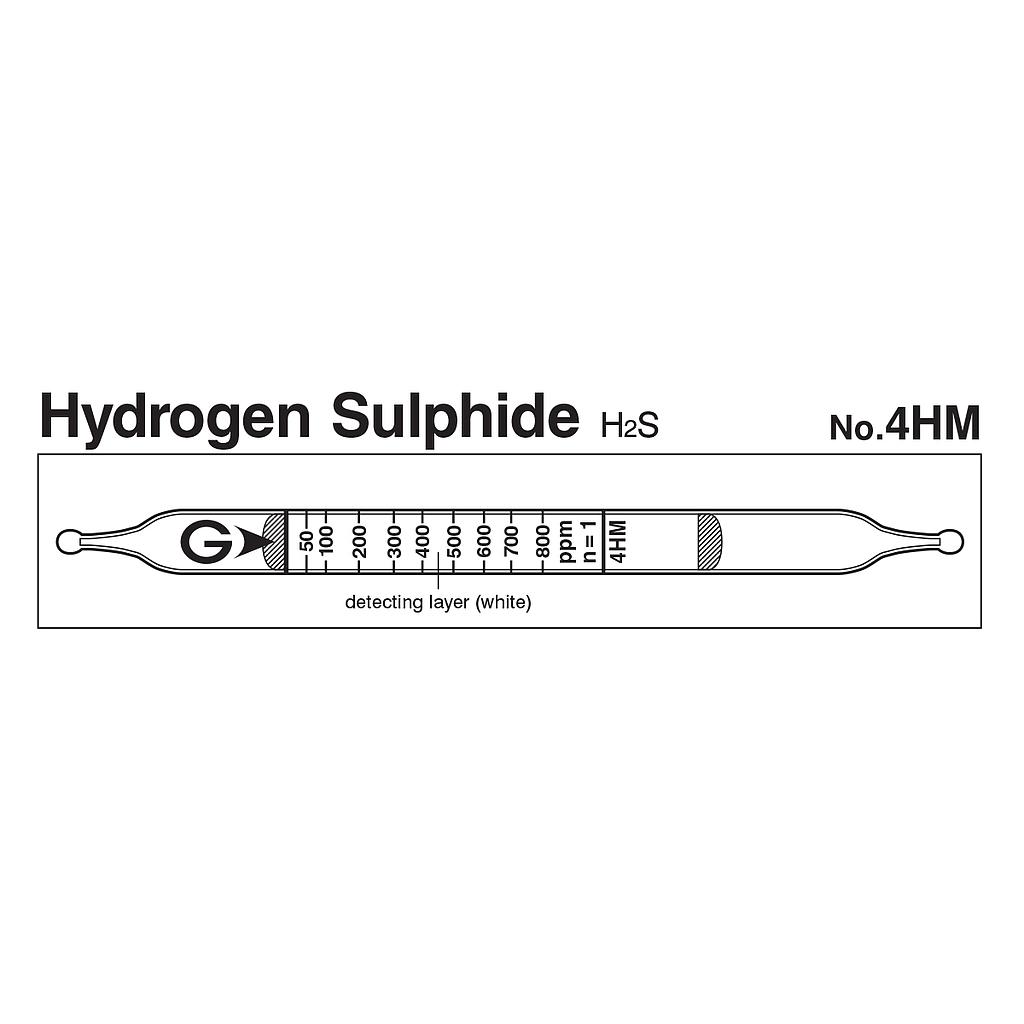

Gastec 4HM Quick-measuring Detector tubes Hydrogen sulphide H2S (25-1600ppm)
ManufacturerGastec(View more products from this manufacturer)
Model4HM
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Indicator: 50 to 800 ppm
Measuring Range:
+ 25 to 50 ppm, Number of Pump Strokes 2
+ 50 to 800 ppm, Number of Pump Strokes 1
+ 800 to 1600 ppm, Number of Pump Strokes 1/2
Sampling Time: 45 seconds per pump stroke
Colour Change: White → Brown
Reaction Principle: H2S + Pb(CH3COO)2 → PbS + 2CH3COOH
Coefficient of Variation: 5% (for 50 to 800 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Performance
| Measuring Range |
|
|||
| Number of Pump Strokes |
|
|||
| Correction Factor |
|
|||
| Sampling Time | 45 seconds per pump stroke | |||
| Detecting Limit | 5 ppm (n=2) | |||
| Colour Change | White → Brown | |||
| Reaction Principle | H2S + Pb(CH3COO)2 → PbS + 2CH3COOH | |||
| Coefficient of Variation | 5% (for 50 to 800 ppm) | |||
| Shelf Life | 3 Years | |||
| Corrections for temperature & humidity | Unnecessary | |||
| Store the tubes at cool and dark place. | ||||
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Nitrogen dioxide | 1/4 time |  |
No |
| sulphur dioxide | 1/1 | + | No |
| Ammonia | No | No | |
| Carbon dioxide | No | No | |
| Carbon monoxide | No | No | |
| Mercaptans | No | No | |
| Organic gases & vapours | No | No |
| Calibration gas generation | Permeation tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 1 ppm(2014) | 5 ppm(2014) | 4.0 to 44% |
