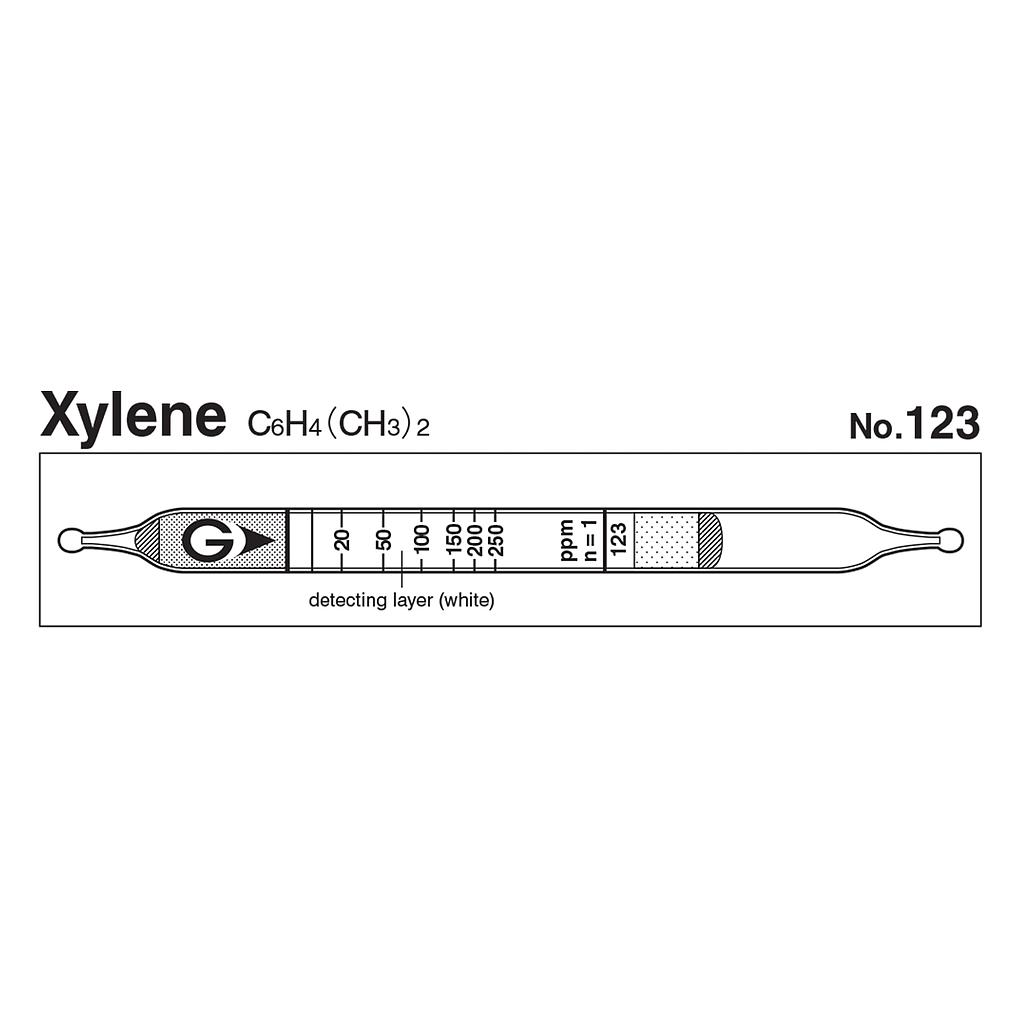

Gastec 123 Quick-measuring Detector tubes Xylene C6H4(CH3)2 (5~625ppm)
ManufacturerGastec(View more products from this manufacturer)
Model123
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Indicator: 20 to 250 ppm
Measuring Range:
+ 5 to10 ppm, Number of Pump Strokes 2
+ 10 to 250 ppm, Number of Pump Strokes 1
+ 250 to 625 ppm, Number of Pump Strokes 1/2
Sampling Time: 1.5 minute per pump stroke
Colour Change: White → Brown
Reaction Principle: C6H4(CH3)2 + I2O5 + H2SO4 → I2
Coefficient of Variation: 10% (for 10 to 50 ppm), 5% (for 50 to 250 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Performance
| Measuring Range |
|
|||
| Number of Pump Strokes |
|
|||
| Correction Factor |
|
|||
| Sampling Time |
|
|||
| Detecting Limit | 1 ppm (n=2) | |||
| Colour Change | White → Brown | |||
| Reaction Principle | C6H4(CH3)2 + I2O5 + H2SO4 → I2 | |||
| Coefficient of Variation | 10% (for 10 to 50 ppm), 5% (for 50 to 250 ppm) | |||
| Shelf Life | 3 Years | |||
| Corrections for temperature & humidity | Unnecessary | |||
| Store the tubes at cool and dark place. | ||||
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Carbon Monoxide | ≦ 1000 ppm | No(Two layers) | Pale brown (Whole layer) |
| Acetylene, Hexane | ≦ 2000 ppm | No(Two layers) | Pale brown (Whole layer) |
| Toluene | ≧ 1/5 | + | Brown |
| Benzene | ≧ 1/5 | + | Pale yellow |
Other substance measurable with this detector tube
| Substance | Correction Factor | No. of pump strokes | Measuring Range |
| Trimethylbenzene | by scale | 2 | 10 to 300ppm |
| Calibration gas generation | Diffusion tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 100 ppm(2014) | 150 ppm(2014) | 1.0 to 7.0% |
