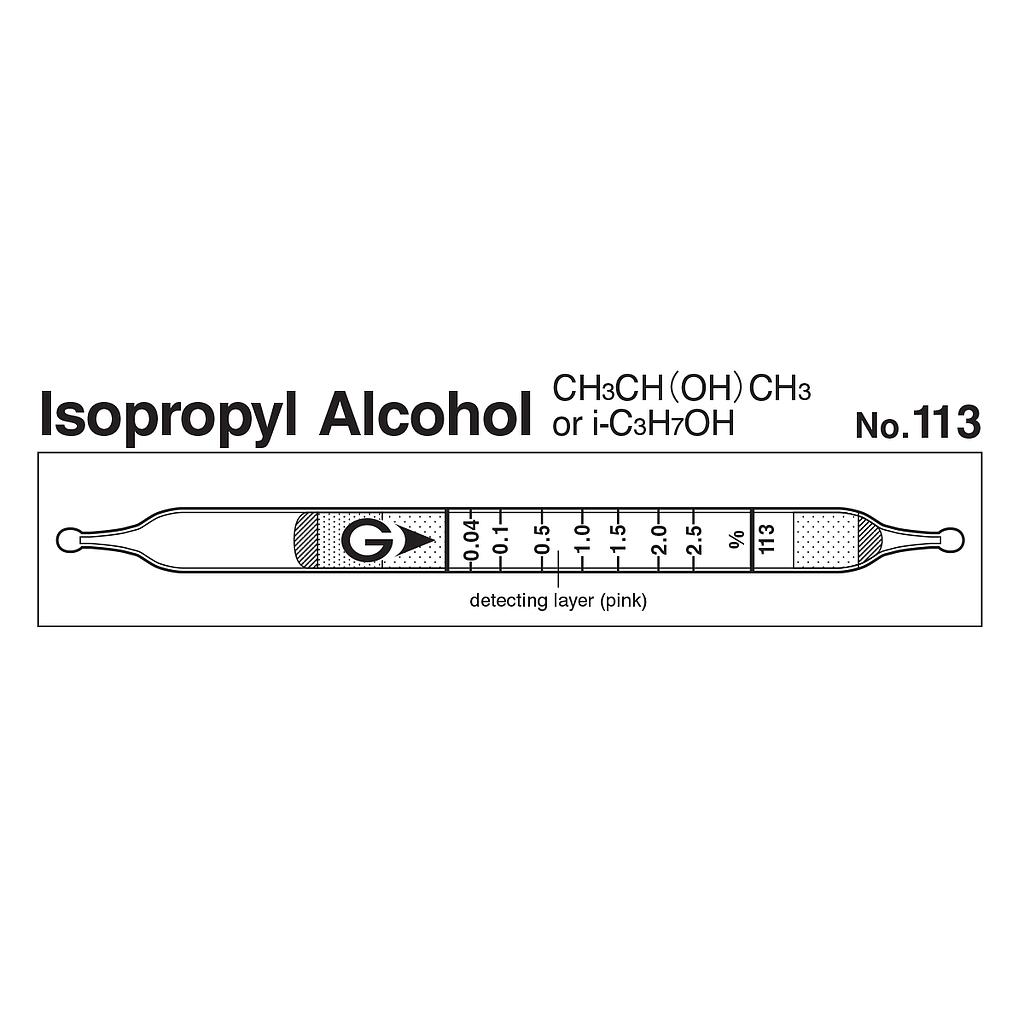

Gastec 113 Quick-measuring Detector tubes Isopropyl alcohol C3H7OH (0.02~ 5.0%)
ManufacturerGastec(View more products from this manufacturer)
Model113
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Indicator: 0.04 to 2.5%
Measuring Range:
+ 0.02 to 0.04%, Number of Pump Strokes 2
+ 0.04 to 2.5%, Number of Pump Strokes 1
+ 2.5 to 5.0%, Number of Pump Strokes 1/2
Sampling Time: 1 minute per pump stroke
Colour Change: Pink → Pale Blue
Reaction Principle: CH3CH(OH)CH3 + Cr6++ H2SO4 → Cr3+
Coefficient of Variation: 15% (for 0.04 to 0.5 %), 10% (for 0.5 to 2.5 %
Nr. of tests: 10
Pump: GV-100S/110S
Performance
| Measuring Range |
|
|||
| Number of Pump Strokes |
|
|||
| Correction Factor |
|
|||
| Sampling Time | 1 minute per pump stroke | |||
| Detecting Limit | 0.004% (n=2) | |||
| Colour Change | Pink → Pale Blue | |||
| Reaction Principle | CH3CH(OH)CH3 + Cr6++ H2SO4 → Cr3+ | |||
| Coefficient of Variation | 15% (for 0.04 to 0.5 %), 10% (for 0.5 to 2.5 %) | |||
| Shelf Life | 3 Years | |||
| Corrections for temperature & humidity | Temperature correction is necessary | |||
| Store the tubes at cool and dark place. | ||||
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Alcohols | + | Pale blue | |
| Carbon dioxide | No | No | |
| Carbon monoxide | No | No |
Other substance measurable with this detector tube
| Substance | Correction Factor | No. of pump strokes | Measuring Range |
| Propyl alcohol | 1 | 1 | 0.04 to 2.5 ppm |
| Calibration gas generation | Static gas dilution method |
| TLV-TWA | TLV-STEL | Explosive range |
| 200 ppm(2014) | 400 ppm(2014) | 2 to 12.7% |
