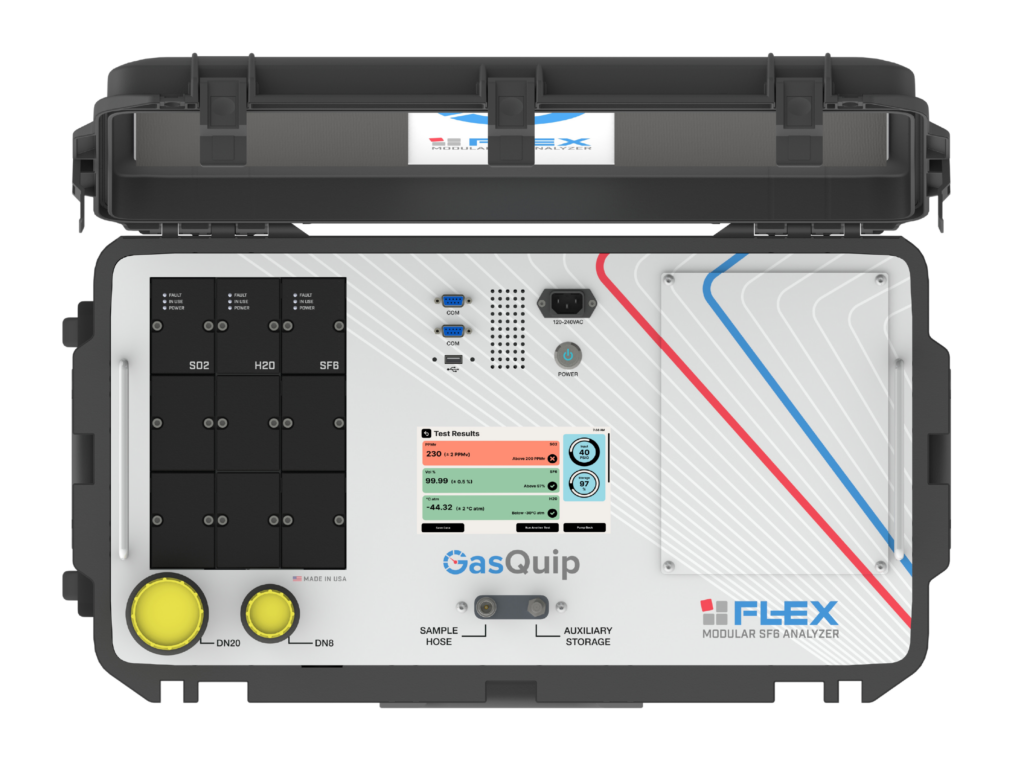

GasQuip GQ-FLEX FLEX-Modular SF6 Gas Analyzer (5-145 PSI)

Device Dimensions: 27.4 x 15.1 x 11.8 in (69.6 x 38.4 x 30 cm)

Weight: 50lbs

Inlet Pressure: 5-145 PSI

Touch Panel Size: 7” Sunlight Readable

Sampling Time: ~7 Minutes

Power Supply: 120 / 240 V

Data Export: USB Port

Gas Connections: Rectus Type 21

Standard Features:

Gas Pump back: Hose Evacuation

External Gas Storage Port: Set Pass/Fail Thresholds

Quick Swap Sensor Modules: Calibration Interval Track

Custom Data Entry: Easy Software Updates

Standard Accessories

DN8 Adapter: MQD-DN8F

DN20 Adapter: MQD-DN20F

15’ Sample Hose: GQ-FLEX-SH

Power Cord: GQ-FLEX-PC

Manual

USB Drive

Comparison chart

Datasheet
