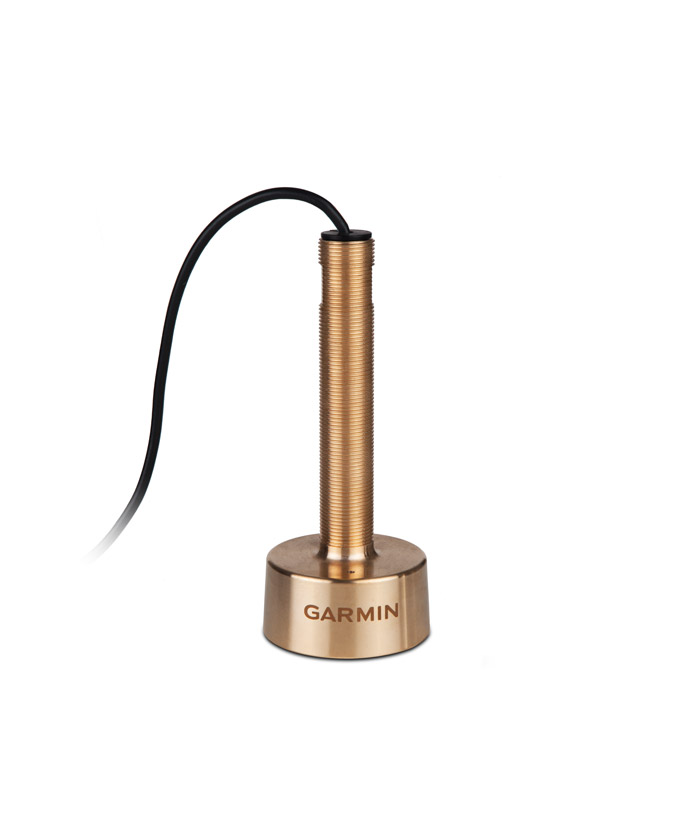

GARMIN GT15M-TH Sonar Transducer

Transducer frequency: CHIRP Mid-band (85-165 kHz)

Transducer power: 600 W

Transducer beamwidth: 24°-13°

Transducer maximum depth: 1,900 ft. freshwater

Transducer cable length: 20 ft.

Transducer depth/speed/temperature: Depth and Temperature

Transducer number of pins: 8-pin

Transducer supported deadrise/transom angles: 0°- 6° deadrise

GT15M-TH transducer is perfect for fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation to depth up to 1000 feet.

The 8-pin transducer features mid band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. The bronze thru-hull housing and stem makes it ideal for wooden fishing boats.

Follow the included installation instructions carefully to avoid damaging your boat.
