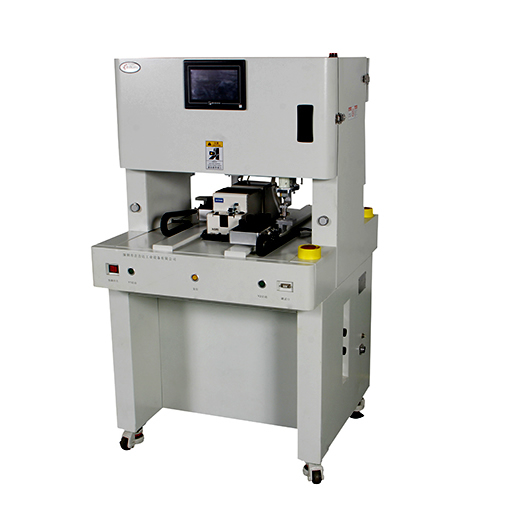

Garland ATS-600II Automatic locking screw machine

Number of operators: 1 person

model: Floor-standing integrated

Dimensions: L*W*H——805*735*1330(mm)

Weight: 220KG

Operating area: Protective

Reclaiming method: Vacuum suction

Number of electric batches: 2PCS

Number of feeders: 2PCS

Number of work stations: 2PCS

Fixture: custom made

Gas source: 0.4-0.8MPa, oil-free, dry

Power supply: 220V 50HZ

Power: 580W

Applicable screw specifications: Below M3

effectiveness: Average 0.6s-0.8s/piece

NPL ratio: 1‰ or less (in number of screws)

speed: X, Y, Z-800, 800, 800mm/s

Precision: +/-0.02mm

Applicable product size: L*W*H--120*200*20(mm)

Alarm item: Sliding teeth, leaking, floating height (optional)

Electric batch torque: Adjustable

Operation interface: touch screen

Coordinate storage: 60

Number of locks: 24

Control unit: 4+4 axis motion controller

Power: Stepper motor / servo motor

Transmission method: Precision timing belt / roller screw

Operating mode: Front/front take, front/back

Model switching time: Within 15 minutes

Data communication: USB port export (optional)

Annex: Coordinate adjustment handle

-This machine adopts double Z-axis lock, which is especially suitable for two kinds of screw products or high capacity requirements.

Compared with single Z-axis models, the integration efficiency is increased by 70%.

-Efficient: average 0.6s-0.8s/piece

-can completely replace the manual lock screw station. It

-can lock two different specifications at the same time. It has strong

-versatility and

-can store a variety of products. The screw coordinates are

-stable and reliable.
