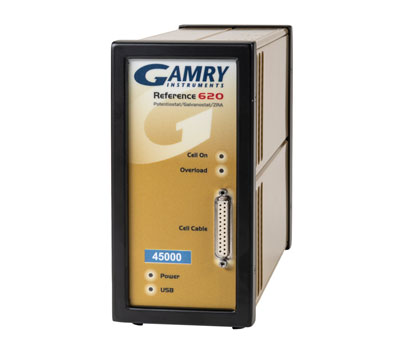

GAMRY Reference 620 Potentiostats (11 (60 pA - 600 mA))

SYSTEM

Potentiostat: Yes

Galvanostat: Yes

Zero Resistance Ammeter: Yes

Floating (Isolated from Earth Ground): Yes

Cell Connections: 2, 3, 4, 5, or 6 (includes Aux channel)

Maximum Current: ±600 mA

Current Ranges: 11 (60 pA - 600 mA)

Current Ranges(including internal gain): 13

Minimum Current Resolution: 1.1 aA

Maximum Applied Potential: ±11 V

Rise Time: <250 ns

Minimum Time Base: 3.333 μs

Noise and Ripple: <2 μV rms

Weight: 3 kg

Dimensions: 9 (W) x 19 (H) x 27 (D) cm
