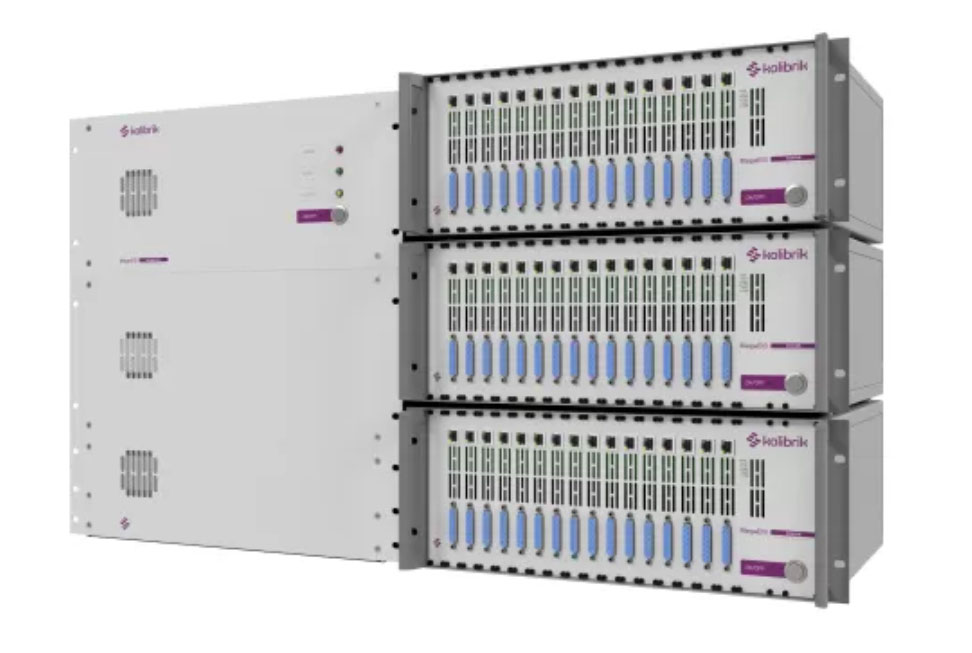

GAMRY MegaEIS Kolibrik Potentiostats (Up to 2000 A)

SYSTEM

Power supply: 110..230 V AC / 50..60 Hz 3x 400 VAC for high-power devices

Dimensions: Modular design for 19“ rack cabinet

Protection rating: IP20

Input Voltage: Up to 1000 V

Total input current (internal + external load):Up to 2000 A

Internal load current: Up to 2000 A

Maximum internal load power dissipation: 20 kW

Cooling: Water

Stack electrometer voltage ranges: Up to ±1000 V

EIS frequency: 1 mHz .. 100 kHz

EIS amplitude: Up to 20% of maximum internal current for < 1 kHz

EIS channel voltage range: ±3 V (can be customized)

Number of EIS channels: Up to 1000 (limited by max. voltage) 8 channels per one module

Connection: USB 2.0, Ethernet

Software: Control software for MS Windows
