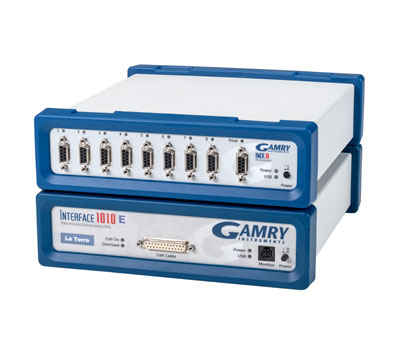

GAMRY IMX8 Electrochemical Multiplexer (10 uHz – 100 kHz)

CHANNEL CHARACTERISTICS

Number of Channels: 8

Operation Modes: Active, Off, Local Pstat, Shorted

Channel Switching Time: <10 ms

Maximum Cell Current: 1 A

Current Leakage to Active Channel Pin From Any Source: < 2 nA

Impedance to Chassis Ground: >500 MΩ || < 20 pF

LOCAL POTENTIOSTAT

Compliance Current : +/- 30 mA (@500 Ω load)

Compliance Voltage: +/- 9.5 V (@1 kΩ load)

Applied Voltage Range: +/- 4.9V

Resolution (16-bit): 78.125 uV / bit

Reference Input Current: < 50 pA

POWER INPUT

Input Voltage: 48V

Input Current: 2.1 A
