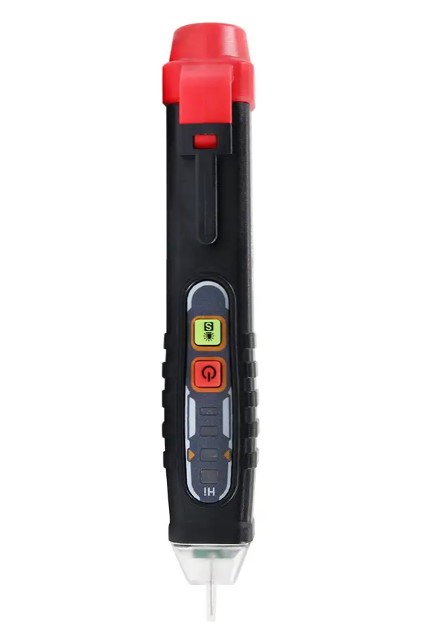

FUZRR FR90 Multi-functional Non-contact Induction Test Pen (12V～1000V AC)

Function: Intelligent identification of neutral and live wires, line breakpoint detection, non-contact voltage detection, lighting flashlight, sound and light alarm, low voltage prompt, automatic shutdown

Voltage detection range: 12V～1000V AC

frequency: 50Hz/60Hz

Alarm method: Sound and light alarm

Automatic Identification: Automatic detection of electric field close to the measured point

Zero fire line judgment: Judging by the signal strength, the strong signal is the live line, and the weak signal is the neutral line.

Line break detection: Line breakpoints under live conditions, quickly identify the live end and the uncharged end

signal strength indicator: The buzzing sound changes from slow to fast; the indicator light flashes from slow to fast

flashlight: white LED lighting

Low voltage reminder: When the battery voltage is lower than 2.4V, the power light flashes and the buzzer prompts

Automatic shut-down: If there is no operation within 5 minutes, it will automatically shut down if no voltage signal is detected

1 meter drop test: Made of high-quality materials, durable and drop-proof, shock-proof and shake-proof

Working temperature and humidity: -20℃～40℃; over 80%rh

storage temperature: -20℃～60℃; below 70%rh

power supply: 2*1.5V AAA batteries

weight: About 32g (without battery)

size: 158mmx28mmx23mm

Safety grade: CAT.III 1000V /CAT.IV 600V
