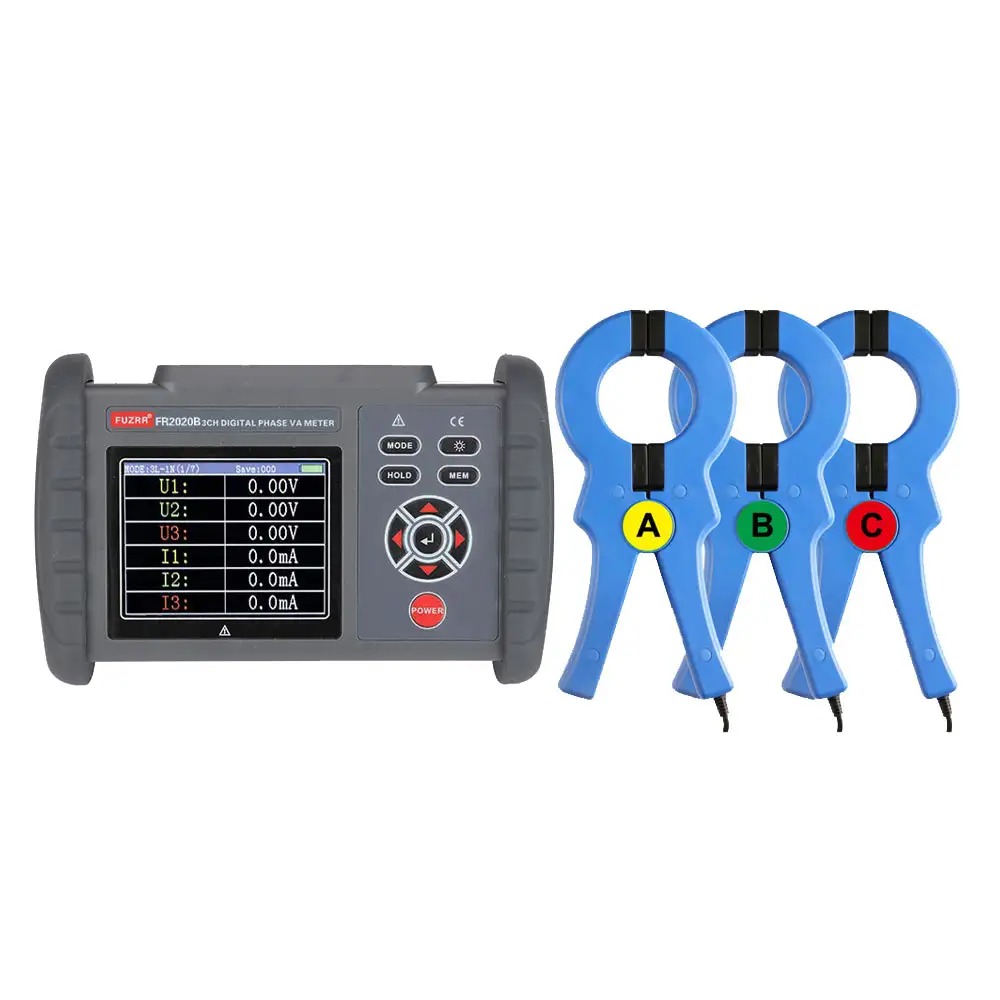

FUZRR FR202B Three-phase Digital Phase Voltammeter (600VAC, 1000AAC)

Power: DC3.7V lithium rechargeable battery

Power consumption: Turn on the backlight and consume up to 250mA. The battery can work continuously for more than 5 hours

Display mode: color LCD display, 72×55mm

Instrument size: W/L/T: 187*119*48mm

Jaw size: Ø50mm

Voltage range: AC 0.00V-600V/Resolution: 0.01V/Accuracy: ±0.5% FS

Current range: AC 0.0mA-1000A/Resolution: 0.1mA/Accuracy: ±0.5% FS

Phase range: 0.0°-360.0°/Resolution: 0.1°/Accuracy: ±1°

Frequency range: 45.00Hz-65.00Hz/Resolution: 0.01Hz/Accuracy: ±0.5Hz

Active power range: 0.0W～600kW/Resolution：0.1W/ Accuracy：±(3%rdg+3dgt)

Reactive power range: 0.0W～600kVAR/ Resolution：0.1VAR/ Accuracy：±(3%rdg+3dgt)

Apparent power range: 0.0W～600kVA/ Resolution：0.1VA/ Accuracy：±(3%rdg+3dgt)

Power factor range: -1～+1/ Resolution：0.001/ Accuracy：±0.03

Detection rate: About 2 second/time

Automatic shut-down: About 15 minutes after power on, the meter will automatically shut down

Backlight function: have, Suitable for dark places and night use

Voltage detection: When the battery voltage is lower than 3V, the battery voltage is low symbol display, remind to charge in time

USB interface: USB interface, uploading data to a computer for analysis of management data

Instrument weight: Host: 380g(including battery), Tip-shaped current clamp: 440g*3, Test line: 190g

Voltage test line length: 1.5m

Current clamp line length: 2m
