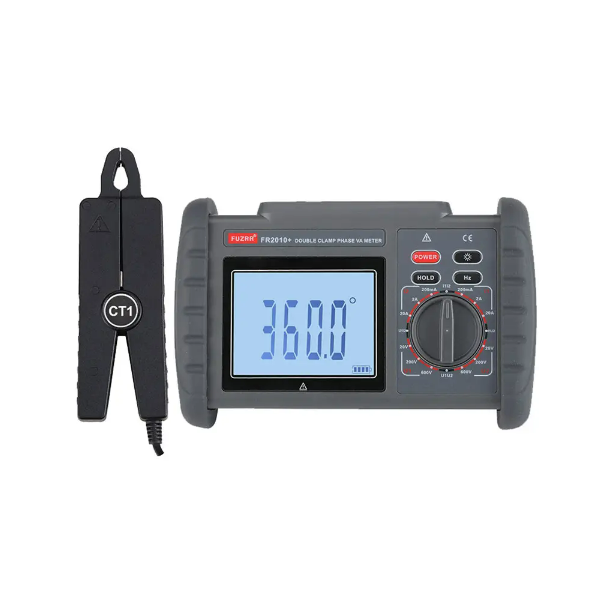

FUZRR FR2010+ Double Clamp Digital Phase Voltammeter (600VAC, 20AAC)

Power: DC3.7V lithium battery

Power consumption: Turn on the backlight and consume up to 30mA. The battery can work continuously for more than 12 hours

Display mode: LCD display, 72×55mm

Instrument size: W/L/T: 187*119*48mm

Jaw size: Ø8mm

Voltage range: AC 0.00V-600V/Resolution: 0.01V/Accuracy: ±0.5% FS

Current range: AC 0.0mA-20.0A/Resolution: 0.1mA/Accuracy: ±0.5% FS

Phase range: 0.0°-360.0/Resolution: 0.1°/Accuracy: ±1°

Frequency range: 45.00Hz-65.00Hz/Resolution: 0.01Hz/Accuracy: ±0.5Hz

Detection rate: About 2 second/time

Data hold: Press HOLD key to hold data during test, "H" symbol display

Automatic shut-down: About 15 minutes after power on, the meter will automatically shut down

Backlight function: have, Suitable for dark places and night use

Voltage detection: When the battery voltage is lower than 3.2V, the battery voltage is low symbol display

Instrument weight: Host: 362g(including battery), Tip-shaped current clamp: 180g*2, Test line: 190g

Voltage test line length: 1.5m

Current clamp line length: 2m

Silicone protective cover: have
