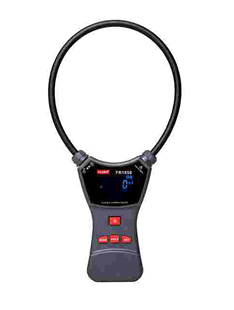

FUZRR FR1050E Flexible Clamp Current Tester (0-750VAC, 0-1000VDC)

Coil length: 950mm

Coil inner diameter: φ300mm

Current range: 0mA-10000A

Current resolution: 1mA

Function: Current test, leakage current test, DC voltage test, AC voltage test

Current accuracy: Accuracy ±2%±5dgt

AC Voltage Range: 0.0V-750V AC; resolution : 0.1V; accuracy : ±1.5%rdg±3dgt

DC Voltage Range: 0.0V- 1000V DC; resolution : 0.1V; accuracy : ±1.5%rdg±5dgt

Sampling rate: 2times/sec

Power: DC4.5V 7# alkaline battery

Backlight: Have

Instrument size: Host size : W/T/H: 151*100*35mm ( not including co il)

LCD size: 45mm*28mm

Coil thickness: Φ8mm

Instrument total weight: 220g

Insulation resistance: Larger than 100M ( 1kV )

Working temperature and humidity: -10°C~40°C below 70%rh

Storage temperature and humidity: -10°C~60°C below 80%rh
