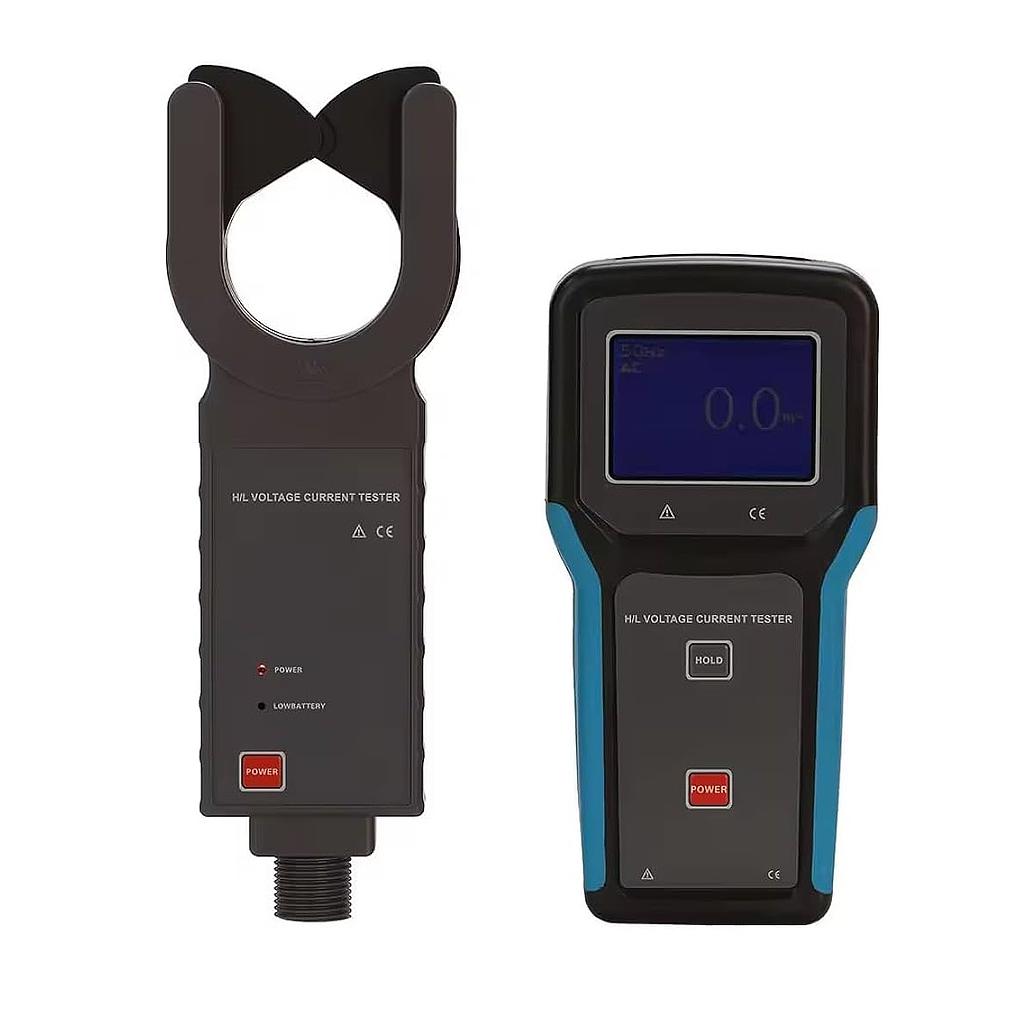

FUZRR FR1001 Wireless H/L Voltage Clamp Current Meter (0.0mA-1200A; ±2%±5dgt)

Range: 0.0mA-1200A (50/60Hz)

Resolution: 0.1mA

Clamp Diameter: Ø50mm

Accuracy: ±2%±5dgt

Sampling Speed: 2 times/second

Wireless Distance: 30m

Function: High-low voltage current measurement

Power supply: Host: DC6V 7 alkaline batteries (1.5V AAAx4); Receiver: DC7.5V 5Alkaline Dry Battery (1.5V LR6x5)

Test Method: Clamp CT

Host Dimension: W/T/H 87*37*262mm; Receiver: W/T/H: 100*35*204mm

LCD Dimension: 62mm×44mm

Total Weight: 2.9Kg(including insulation rod and battery)

Data Storage: 200 groups

Data Storage Full: Data full function: "FULL" symbol display

Battery Voltage: When the battery voltage is below 5.2V, the symbol of battery voltage is low will show

Insulated Rod: 5 sections insulation rods (total 5 meters)

Insulation strength: AC 60kV/rms

Work Temperature: -10°C-40°C

Storage Temperature: -10°C-60°C

Humidity: 0°C-31°C ≤75%, 31°℃-40℃≤ 50%
