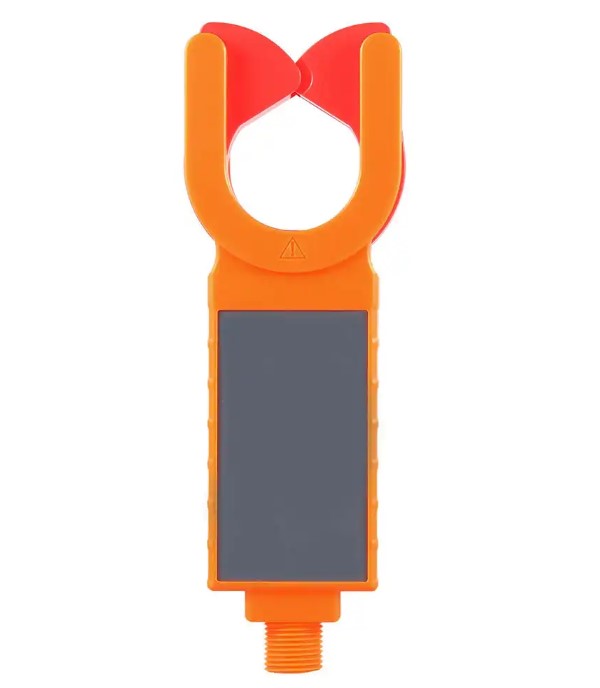

FUZRR FR050HV High Voltage Clamp Current Sensor (AC 0～1200A)

Features: Detection of current, leakage current, transformation ratio, higher harmonic current, phase, electrical energy, power, power factor, etc. of high and low voltage lines

Output method: Current sense output

Jaw size: Φ50mm

Secondary development Display window: 46*30mm

Range: AC 0.0mA～1200A

Resolution: AC 0.1mA

Accuracy: ±1.0%FS (50Hz/60Hz; 23℃±2℃) The wire is in the center of the jaw

Phase error: ≤3°(50Hz/60Hz; 23℃±2℃)

Turns ratio: 4000:1

Reference load: RL: 0～10A≤50Ω; 0～100A≤5Ω; 0～1200A≤0.5Ω

Quality: 300g

Dimensions: Width, thickness and height 87*37*262mm

Output Interface: 10cm long, open the upper and lower covers to connect

Electric field disturbance: When the external electric field 100A is close to 30mm, it is about 10mA

Wire position: The lead under test is in the center of the jaws

Current frequency: 45Hz～65Hz (current frequency to be measured)

Line voltage: AC 60kV and below line test (the telescopic insulating rod should be fully opened)

Operating temperature: -25º C to +55º C

Medium strength: AC3700V/rms (between core and shell)

Current frequency: 45Hz～65Hz (current frequency to be measured)
