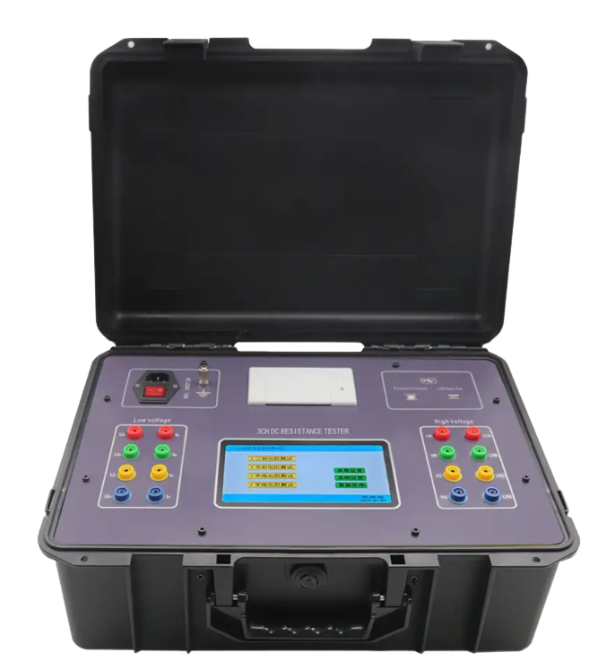

FUZRR ES3080 Three-Channel DC Resistance Tester 20A (0.1uΩ – 5000Ω)

Function: It is mainly used to measure the DC resistance of transformers, transformer winding resistance, grounding network connection continuity, wire resistance of cables, contact resistance of switches, connectors, relays, coils, motors, transformer winding resistances and metal riveting resistance, metal components Connection resistance test, low value resistance test, contact resistance test, etc.

Resistance range: 0.1uΩ – 5000Ω _

power supply: AC 220V 10A (50Hz)

Rated measuring power: 12 00W

Backlight: Adjustable backlight brightness

measurement method: Four-wire test

Short circuit current output: 0.2 A, 0.5 A, 2 A, 5 A, 10 A , 20A ( 6 settings)

Short circuit maximum current: DC 20A ±10%

No-load maximum voltage: DC 27V ± 15 % _

display screen: 7 -inch touch color screen

Overload protection: Have

automatic discharge: Have

U disk interface: Copy and save data

USB interface: With a USB interface , it can be connected to the host computer to view data

Measurement instructions: Measurement progress display, real-time measurement display

Meter size: Length, width and height: 400mm × 300mm ×210mm

Test leads: 8 strips

Print: Built-in thermal printer

Paper Specifications: 57*40mm

data storage: 500 sets of measurement data storage

Data access: Have

overflow display: Over range overflow function: “OL” symbol display

Power consumption: Standby: ≤ 110W / Measurement: ≤ 15 00W

quality: Gauge: 7 kg

Working temperature and humidity: -10℃～40℃; below 80%rh

Storage temperature and humidity: -20℃～60℃; below 70%rh

Insulation resistance: 10MΩ or more (500V between circuit and case)

Pressure resistance: AC 3700V/rms (between circuit and case)

Electromagnetic properties: IEC61010-4-3, radio frequency electromagnetic field≤1V/m

Suitable for safety regulations

IEC61010-1, IEC1010-2-31, IEC61557-1, 5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V
