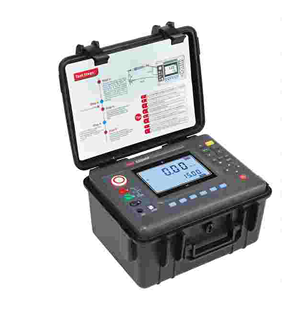

FUZRR ES3045E Digital Insulation Resistance Tester (0.01MΩ-35TΩ)

Rated applied voltage: 250; 500; 1000; 2500V; 5KV; 10KV

Resistance limit range: 0.01MΩ-35TΩ

Resolution: 0.01ΜΩ

Accuracy: ±3%rdg±5dgt

Output short-circuitt current: ≥6mA

Function: Insulation resistance test, voltage test, current test, capacitance test

Basic condition: 23°C±5°C, below 75%rh

DC voltage range: 0.1~1000V, accuracy: ±1.5%rdg±3dgt, Resolution: 0.1V

AC voltage range: 0.1~750V, accuracy: ±1.5%rdg±3dgt, Resolution: 0.1V

DC current measurement: 0.01nA-6mA, accuracy: ±5.0%rdg±2dg, Resolution: 0.01nA

Capacitance test: 10nF~50uF, accuracy: ±10%rdg±5dg, Resolution: 10nF

Power: 12V rechargeable battery

Instrument size: 240mm (L)*188mm (W)*85mm (H)

Instrument weight: 2720g(including battery)
