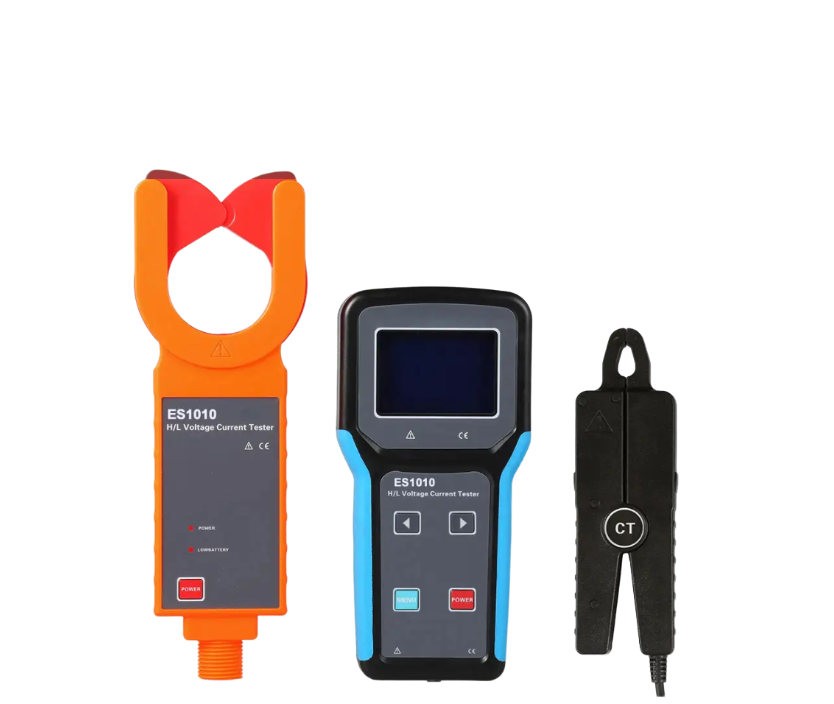

FUZRR ES1010 Wireless H/L Voltage Current Ratio Tester (0.0mA-1200A, 0.0mA -20A)

High voltage detector

Range: 0.0mA 1200A (50/60Hz automatic)

Resolution: 0.1mA

Clamp Diameter: $50mm

Test Accuracy: +2%±5dgt

Power: DC6V 7# Alkaline battery ( 1.5V AAAx4)

Meter Dimension: W/T/H: 87*37*262mm

Host (current clamp)

Range: 0.0mA ~ 20A

Resolution: 0.1mA

Clamp Diameter: $7.5mm

Test Accuracy: ±0.5%±5dgt

Power: DC7.5V 5 # Alkaline battery ( 1.5V LR6×5)

Meter Dimension

Host: W/T/H:100*35*204mm

Current clamp: W/T/H: 42*20*137mm

Sampling Speed: 2 times/second

Function: High-low voltage current transformer primary and secondary loop current, transformation ratio, polarity, phase, and on-line test; current and voltage ratio on both sides of transformer; on-line test; load current test Wireless transmission, straight line transmission distance 30m Automatic shift

Transmission type: Wireless transmission, linear transmission distance 30m

Shift gear: Fully automatic shift

Test mod: Clamp CT

Display mode: LCD: 128dots*64dots Blue screen backlight function, suitable for dark places

Ratio: Three kinds of transformation ratio display: (The primary and secondary circuit actually measured the current transformation ratio; the conversion ratio of the secondary circuit 5A; 10kV-YY transformer conversion ratio of 10kV/380V), the maximum ratio of 1:10 million

Line voltage: Line test with insulation sheath below 60kV or bare wire current test below 35kV (must operate with insulation rod)

Lead wire length: The lead wire of the current clamp 2 meter

Weight: Total weight of instrument: 3.1Kg (including insulation rob and instrument bag), High voltage detector: 370g (including battery), Host: 409g (including battery), Current clamp: 180g

Data interface: USB transmission

No signal instruction: "NO SIGNAL" is displayed when the host does not receive the transmission signal

Insulated rod: Five section insulation rods (5 meters in total)

Insulation strength: AC 60kV/rms

Line test: Line test with insulation sheath below 60kV or bare wire current test below 35kV (operate with insulation rod)
