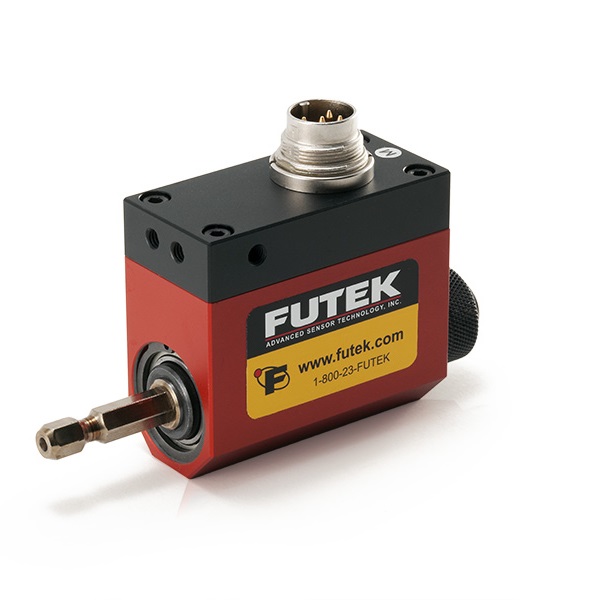

FUTEK TRH300 Slip-Ring Hex-Drive Rotary Torque Sensor (2Nm; 260Nm/rad; IP40)

PERFORMANCE

Nonlinearity: ±0.2% of RO

Hysteresis: ±0.1% of RO

Nonrepeatability: ±0.2% of RO

Rotational Speed: 3000 RPM Max

ELECTRICAL

Rated Output (RO): 1 mV/V nom (2 Nm); 2 mV/V nom (6–20 Nm)

Excitation (VDC or VAC): 5 to 11

Connection: 6 pin Binder Series #581 (09-0323-99-06)

MECHANICAL

Weight (approximate): 0.7 lb [0.30 kg]

Safe Overload: 150% of RO

Material: Aluminum (Housing)

Steel Alloy (Shaft)

IP Rating: IP40

TEMPERATURE

Operating Temperature: 14 to 194°F (–10 to 90°C)

Compensated Temperature: 41 to 122°F (5 to 50°C)

Temperature Shift Zero: ±0.01% of RO/°F (±0.02% of RO/°C)

Temperature Shift Span: ±0.01% of Load/°F (±0.02% of Load/°C)

CAPACITIES

Nm [in-lb]: 2 [18]

Max Axial Force lb [N]: 4.5 [20]

Max Radial Force lb [N]: 4.5 [20]

Torsional Stiffness Nm/rad: 260

Datasheet
