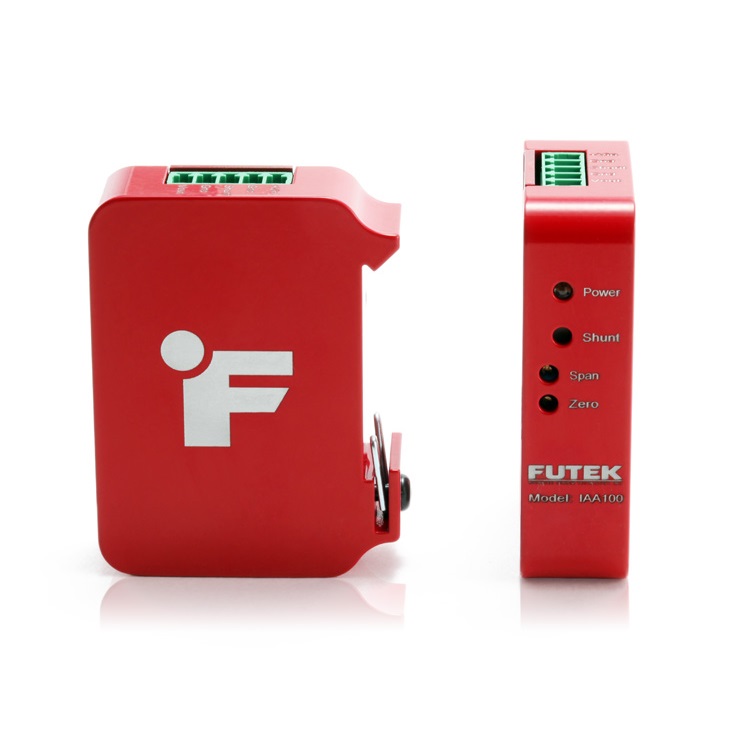

FUTEK IAA100 Strain Gauge Analog Amplifier with Voltage Output

Parameter

Power Supply: 16 ~ 26 VDC

Current Consumption: 30mA, MAX 100mA

Load Impedance: 14000 Ohm

Sensor Impedance: 350/754 ~ 5000 Ohm

Bandwidth (Setting 1): 1000 Hz

Bandwidth (Setting 2): 100002 Hz

Bandwidth (Setting 3): 250003 Hz

Common Mode Rejection Ratio: 120 dB

Noise: 10 mVp-p

Output Span range: –10 ~ 10 % of FSR

Output Zero range: –10 ~ 10 % of FSR

Gain Drift with Temperature: –25 ~ 25 PPM of FSR

Nonlinearity: 0.01 ~ 0.01 % of FSR

Zero Drift with Temperature: –25 ~ 25 PPM of FSR

Operating Temperature: 0 ~ 70°C

Storage Temperature: –40 ~ 85°C

Relative Humidity: 95% at 39°C

Physical Features

Material: Stainless steel cover with aluminum body fastened by magnets

Protection: IP50

Weight (approx.): 0.23 lb (104 g)

Power: LED Indicated

Conformity

RoHS: 2011/65/EU

CE: EN61326-1:2013; EN55011:2009 (Amended by A1:2010) Class 1 Certification for Aerospace and Medical Grade Device
