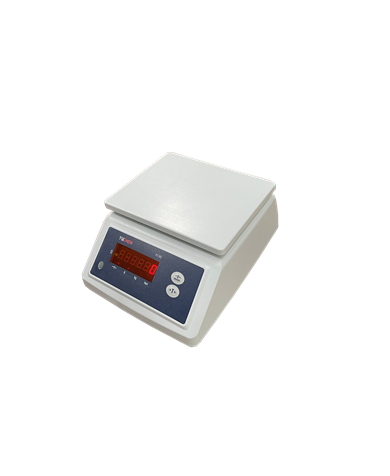

Fushun Yuchen Weighing Apparatus E130 Electronic Balance

Maximum capacity: 1.5 kg / 3 kg

Minimum capacity: 20e

Readability (division value): d = 1 g / 2 g

Verification scale interval: e = d = 1 g / 2 g

Weighing range: (1 g / 2 g to 1.5 kg / 3 kg)

This means the scale has a division of 1 g up to 1500 g, and 2 g from 1500 g up to 3 kg.

Weighing units: kg, g, lb, oz

Pan size: 226 × 182 mm

Function keys: The scale has two common function keys: ZERO / ON–OFF and TARE

Scale material:

Housing made of ABS plastic

Weighing pan made of stainless steel, easy to clean

Functions: Weighing, tare; display indicators include zero, tare, stable, and low battery

Applications: Weighing, check weighing

Indicator:

The scale is equipped with dual displays (front and rear), featuring red LED digits, clear and easy to read, not blurred even in high-humidity environments

Load cell:

Model L6D, manufactured by Zemic (China), maximum capacity 10 kg

Ingress protection:

IP68, resistant to salt water, high-temperature environments, and cold rooms

Operating temperature: 10°C – 40°C

Operating humidity: 10% – 80% RH

Scale dimensions: 300 × 230 × 133 mm

Net weight: 4.3 kg

Power supply:

220–240 V AC, with rechargeable battery allowing up to 100 hours of operation per full charge (full charge in 12 hours).

Rechargeable battery: LEOCH DJW6.5.0, 6 V 5.0 Ah

Adapter: 12 V DC, 1000 mA
