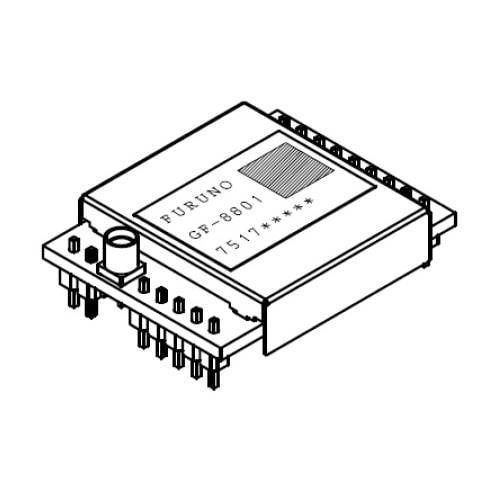

Furuno GF-8801 GPS Modules GNSS Disciplined Oscillator with TCXO

Frequency: 1.57542 GHz, 1.602 GHz

Dimensions: 34 mm x 27 mm x 8 mm

Unit Weight: 7 g

Interface Type: UART

Mounting Style: Through Hole

Number of Channels: 12 Channel

Supply Voltage - Max: 3.7 V

Supply Voltage - Min: 3.7 V

Acquisition Sensitivity: - 130 dBm

Protocol - GPS, GLONASS: GPS, GNSS, GLONASS, Galileo

Operating Supply Current: 150 mA

Operating Supply Voltage: 3.7 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Time To First Fix - Cold Start: 35 s
