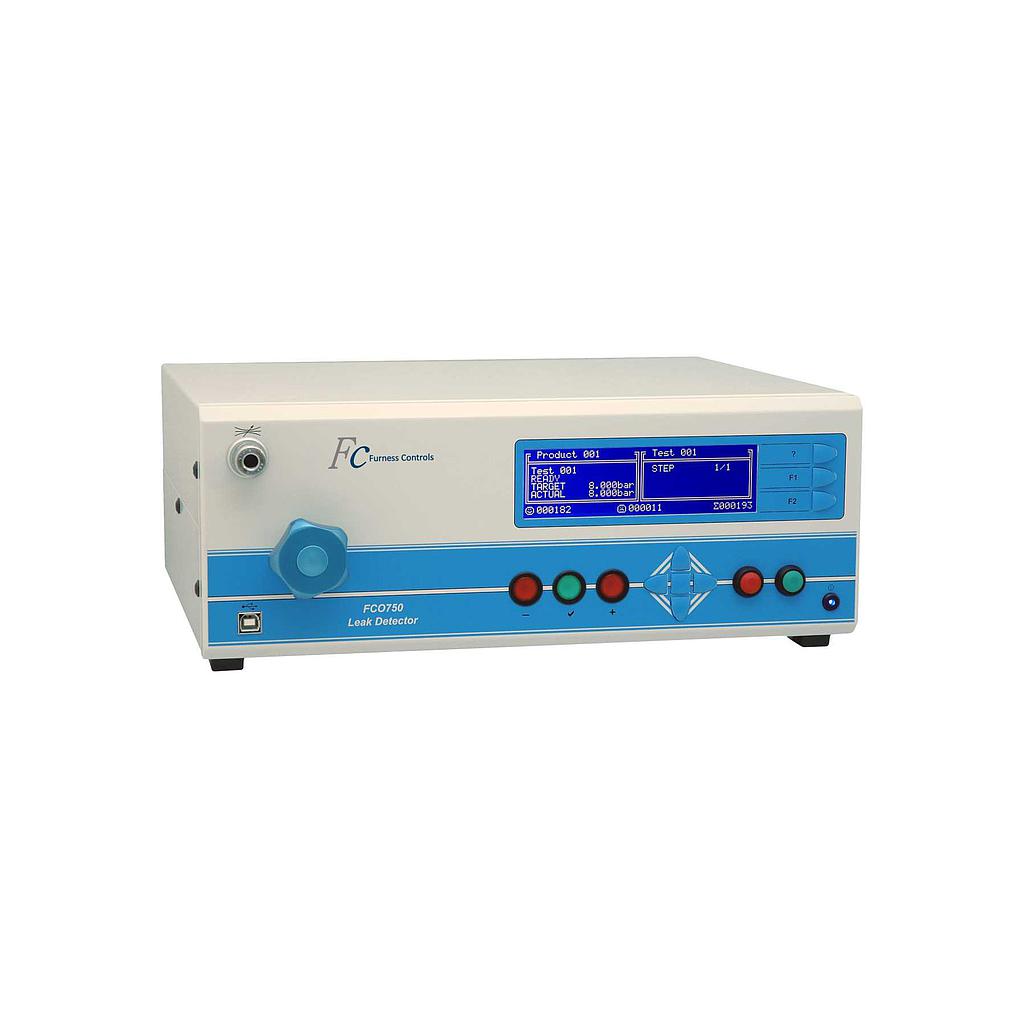

Furness Controls FCO750 Production line leak tester (±20kPa, -1bar to + 30.00bar)

Leak Measurement

Leak ranges: ±200.0Pa / ±2.000kPa / ±20.00kPa

Accuracy @ 20°C:

10% to 100% range: < ± (1% reading + 1 digit)

0 to 10% range: < ± (0.1% range + 1 digit)

Resolution 4 digit display

Temperature Coefficients:

Zero: Automatic

Span: < ±0.15% per °C

Long Term Drift (span) < ±1% per year

Pressure Measurement

Pressure Ranges:

±99.99mbar / ±200.0mbar / ±999.9mbar

-1bar to +4.000bar / -1bar to +8.000bar / -1bar to +9.999bar / -1bar to +14.00bar / -1bar to + 30.00bar

Accuracy @ 20°C:

10% to 100% range: < ± (1% reading + 1 digit)

0 to 10% range: < ± (0.1% range + 1 digit)

Resolution 4 digit display

Temperature Coefficients:

Zero: < ±0.05% per °C

Span: < ±0.1% per °C

Long Term Drift (span) < ±1% per year

Electrical

Supply Voltage 24VDC ±10% < 500mA

Electrical connections

Power: 2 way detachable screw terminal

Outputs: 20 way detachable screw terminal

Inputs: 16 way detachable screw terminal

RS232: 9 pin D plug

RS485: 5 pin detachable screw terminal

LAN: RJ45 connector, 10base-T/100base-TX Ethernet

USB: 1 x USB Type A connector, 1 x USB Type B connector

Control Inputs Up to 24 Opto-isolated, active high or active low. 5VDC to 24VDC into 10K

Control Outputs Up to 32 Active High transistor output (PNP). 12VDC to 45VDC, 120mA (per channel)

Pneumatic

Media Compatibility: Clean dry air or non-corrosive gas

Air Supply Pressure: Maximum 10bar gauge, Minimum 5bar gauge

Regulator Supply Pressure: Maximum 16bar gauge or 35bar for 30bar option

Pneumatic Connections:

Air supply: 6mm push-in tube connector

Regulator supply and output: 8mm push-in tube connector

Test/Reference: 1/8” BSPF

Up to 5 programmable pneumatic outputs: 4mm push-in tube connectors

Leak Tightness: < 0.2cc/Hour

Construction

Enclosure Steel construction enclosure with paint finish. Suitable for 19” 3U rack mounting.

Dimensions – Rack Case 482 x 133 x 296 mm (W x H x D)

Dimensions – Bench Case 366 x 147 x 296 mm (W x H x D)

Weight 8.5 kg ± 0.5 kg
