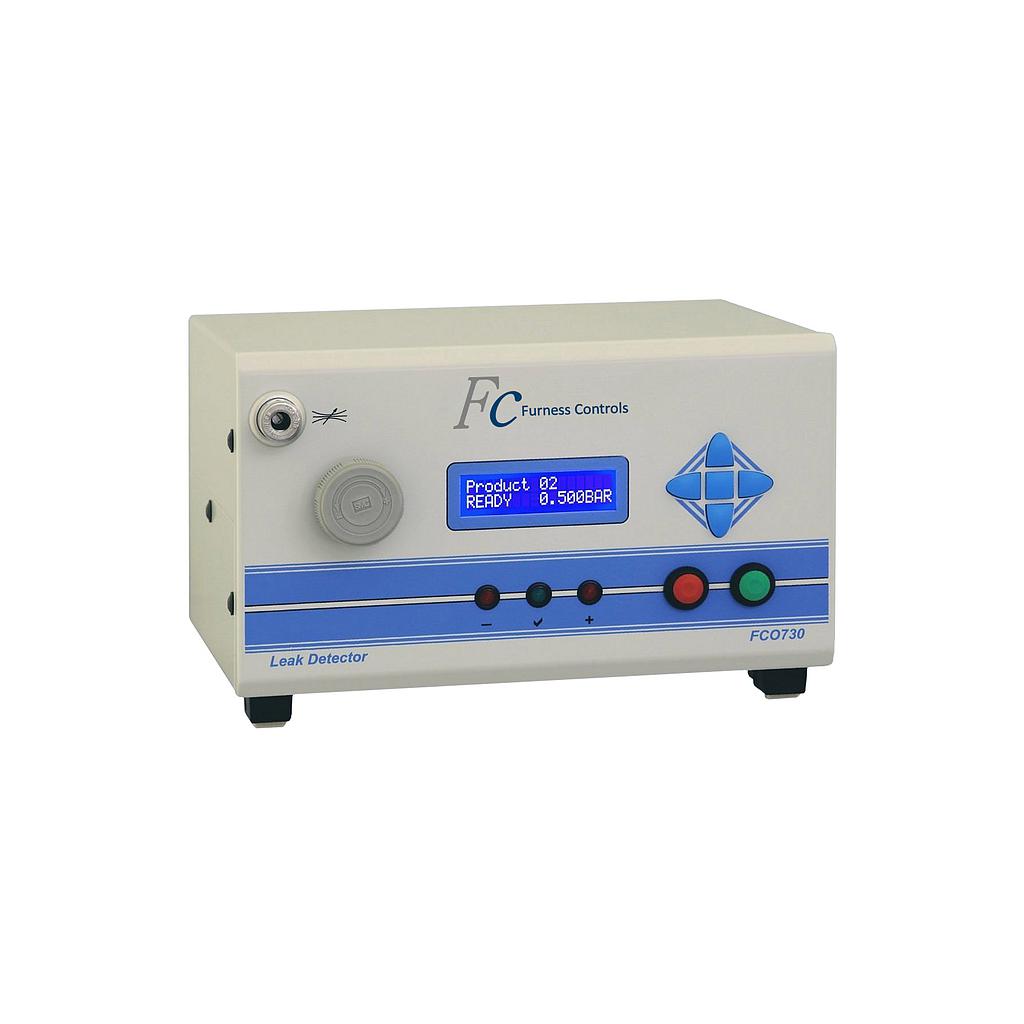

Furness Controls FCO730 Production line leak tester (±20.00kPa, -1bar ~ + 30.00bar)

Leak Measurement

Leak ranges: ±200.0 Pa / ±2.000 kPa / ±20.00 kPa

Accuracy @ 20°C

200 Pa and 2 kPa models:

10% to 100% range: < ± (1% reading + 1 digit)

0 to 10% range: < ± (0.1% range + 1 digit)

20 kPa model: < ± (1% range + 1 digit)

Resolution: 4 digit display

Temperature Coefficients:

Zero: Automatic

Span: < 0.15% per °C

Long Term Drift (span): < ± 1% per year

Pressure Measurement

Pressure Ranges

±99.99mbar / ±200.0mbar / ±999.9mbar

-1bar to +4.000bar / -1bar to +8.000bar / -1bar to +9.999bar / -1bar to +14.00bar / -1bar to + 30.00bar

Accuracy @ 20°C:

10% to 100% range: < ± (1% reading + 1 digit)

0 to 10% range: < ± (0.1% range + 1 digit)

Resolution: 4 digit display

Temperature Coefficients:

Zero: < 0.05% per °C

Span: < 0.1% per °C

Long Term Drift (span): < ± 1% per year

Electrical

Supply Voltage 24 VDC ± 10% < 500 mA

Electrical connections:

Power: 2 way detachable screw terminal

Outputs: detachable screw terminal

Inputs: detachable screw terminal

RS232: 9 pin D plug

RS485: 5 pin detachable screw terminal

Control Inputs: Up to 12 Opto-isolated, active high or active low. 5 VDC to 24 VDC into 10 K

Control Outputs: Up to 16 Active High transistor output (PNP). 12 VDC to 45 VDC, 120 mA (per channel)

Pneumatic

Media Compatibility: Clean dry air or non-corrosive gas

Air Supply Pressure: Maximum 10 bar gauge, Minimum 5 bar gauge

Regulator Supply Pressure: Maximum 16 bar gauge or 35 bar for 30 bar option

Pneumatic Connections:

Air supply – 6 mm push-in tube connector

Regulator supply and output – 8 mm push-in tube connector

Test/Reference 1/8” BSPF

Pneumatic pilot outputs - 4 mm push-in tube connectors

Leak Tightness < 0.2cc/Hour

Construction

Enclosure Steel construction enclosure with paint finish. Suitable for 19” 3U rack mounting.

Dimensions – Rack Case 267 x 133 x 296 mm (W x H x D)

Dimensions – Bench Case 232 x 147 x 296 mm (W x H x D)

Weight 5 kg
