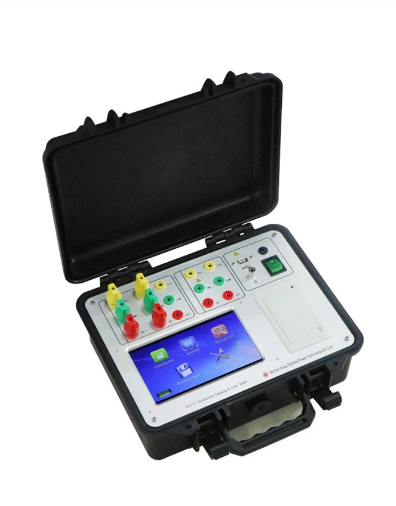

Fuootech RLS-H Transformer Capacity Load and No-load Loss Tester

Input charaderisc

Active part:

Voltage teal range: 0~10V

Curent test range: 0~10A

Passive part:

Voltage test range: 0-750V Automatic range switching within the instrument

Current test range: 0~100A Automatic range switching within the instrument

Accuracy:

Voltage: ±0.2%

Current: ±0.2

Power: ±0.2%(CosΦ>0.2), ±1.0%(0.02<CosΦ<0.2)

Temperature: -10°C~+40°C

Charging power: AC160V~260V

Insulation

(1) voltage/current input to case ≥100ΜΩ

(2) The working power input terminal bears power frequency between the housing 2kV (active), 1min test

Host volume: 32cm×24cm×13cm

Weight: 3kg
