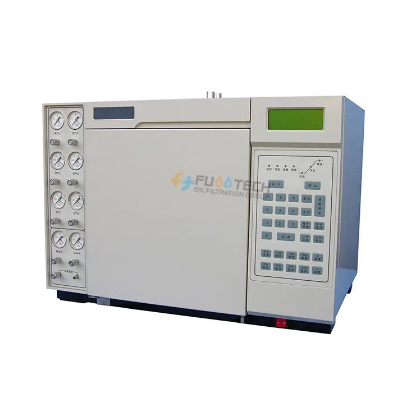

Fuootech GC-2010SD-9 Insulating Oil DGA Analysers and Monitors for 9 Gases (≤2 × 10-11g / s)

(1) Operation display:5.7 inch lattice localization color LCD

(2) Temperature control region:6 Road

(3) Temperature range: room temperature 8 ℃ ~ 400 ℃,Incremental: 1 ℃, Accuracy: ±0.1℃(4) Temperature programmed order number: 16 order

(5) Gas Control: Mechanical valve control mode, and electronic pressure flow control modefor option.(6) External event: 4 channels;

(7) Injector type: Packed column sample, capillary tube, six-way valve gas sampling, automaticheadspace sampling for option.

(8) Detector: FID, TCD, ECD(optional), FPD(optional)

(9) Boot into the sample: manual, automatic optional

(10) Communication interface: Ethernet: IEEE802.3

FID(flame ionization detector)

Detection limit: ≤2×10-11g/s (Hexadecane/isooctane)

Baseline noise: ≤5×10-14A

Baseline shift: ≤1×10-13A/30min

Linear range: ≥ 106

TCD(thermal conductivity detector)

Sensitivity: S≥2500mV•ml/mg (benzene/methylbenzene) (enlarge 1,2,4,8 times for option)

Baseline noise: ≤20μV

Baseline shift: ≤30μV/30min

Linear range: ≥104

ECD (electron capture detector) optional

Detection limit: 1×10-13g/ml (Hexachlorocyclohexane/isooctane)

Baseline noise: ≤0.03mV

Baseline shift: ≤0.2mV/30min

Linear range: 103

Radioactive souce: 63Ni

FPD (flame photometric detector) optional

Detection limit: (S)≤5×10-11g/s, (P)≤1×10-12g/s(parathion-methyl/ absolute ethyl alcohol)

Baseline noise: ≤3×10-13A

Baseline shift: ≤2×10-12A/30min

Linear range: Sulphur≥102, phosphorus≥103
