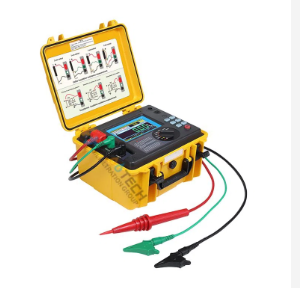

Fuootech FTIR-15M 15 KV Digital Megohmmeter ((5% ~ 10%) ± 10V)

Rated Voltage: 250V, 500V, 1000V, 2500V, 5000V, 10kV, 15kV

Output Voltage Accuracy: (5%~10%) ±10V

Insulation Resistance Range: 15KV, 30TΩ, 7mA

Output Short Circuit Current: ≥7mA

Power Supply: Rechargeable lithium battery pack 6.2Ah

Polarization Index Test: Yes

Dielectric Absorption Ratio Test: Yes

Ramp Test Mode: The output voltage will start at 10% of the preset voltage and increase in steps of 10% until the preset voltage is reached

Filtered Resistance Test Mode: 10S, 20S, 30S, 40S (4 selections)

Voltage Test: Range: AC/DC 0V~1000V;Accuracy: ±(5%+3V)

Current Test: Range: 0.01nA~9mA;Accuracy: ±(5%+0.2nA);

Capacitance Test: Range: 10nF~25uF;Accuracy: ±(10%+nF)

Voltage Monitor: Monitor the voltage of the measured object, and monitor discharge status after test, Forbidden to test when voltage is larger than 36V, protect instrument and operator.

Test Timer: Automatic record test time, time range: 0s~9999s

Storage Function: Automatically store the real-time test data with test date, time and timing, total of 1000 groups

Upload Function: Upload the stored data to computer with USB communication cable.

Battery Power Indication: Yes, when battery voltage low will remind to replace the battery

Automatic Shutdown: After 15 minutes start up will shut down automatically without any operation

Meter Dimension: 280mm × 260mm × 160mm

Meter Weight: 4900g (include battery)

Test Wire: Red high voltage test wire 1 pcs (with alligator clip 1PCS and hook 1PCS), green test wire 1PCS, black test wire 1PCS

Protection Level: Close the case IP65; open the case IP40

Working Environment: -20℃~50℃; 80%rh

Store Environment: -25℃~65℃; 80%rh

Insulation Resistance: 50MΩ (1000v) (between the test circuit and shell)

Withstand Voltage: AC 3kV 50Hz 1min (between the test circuit and shell)

Suitable Safety Standard: IEC61010-1,IEC61326-1
