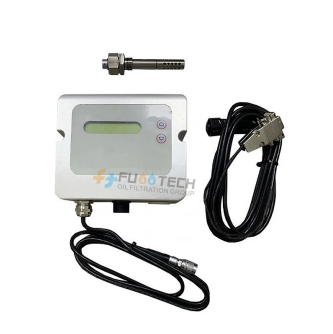

Fuootech FTEE Online PPM Moisture Content Meter FTEE (AC: 220V / 50Hz, DC: 9V ~ 33V)

Power Supply: AC: 220V/50Hz (optional)

DC: 9V~33V (standard configuration)

Signal Output: RS232 serial output

Two 4～20mA output，the maximum loop load 500Ω(optional) (Dual channels can configure with output freely)

Two relay alarm output (optional) ( The alarm output type can be freely equipped. aw, t, ppm)

LCD Display: Switch water activity(aw), temperature (℃) and water content (ppm) at will

Alarm Line Setting: The alarm value can be set by serial port setting software （aw，t，ppm）(optional)

Probe Type: Several types to be choose according to customers’ needs for the probe length.

Probe Cable Length: 1m（Can be customized for other length）

Working Mode: Support on-line/off-line test

Required Test Temperature: Maximum Pressure: 10 bar

Oil Temperature: -40℃～125℃

Water Activity Collection aw: Test Range: 0～1 aw

Test Resolution: ±0.0003 aw

Test Accuracy: ±0.02 aw @(0～0.8aw)

Repeatability Error: ±0.002 aw

Response Time with Stainless Steel Filter: 10 min

Temperature Collection T: Test Range: -20℃ ～ 80℃

Test Resolution: 0.015℃

Test Accuracy: ±0.5℃ @(0～80℃)

Repeatability Error: ≤ ±0.2℃

Response Time: 30 s

Absolute Water Content AH: Test Range: 0~1000 ppm

IP Grade: IP Grade of Probe: IP67

IP Grade of Shell: IP65
